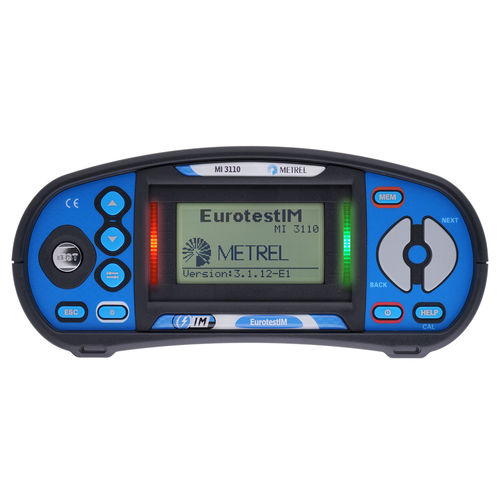

Voltage tester MI 3110 EurotestIM

leakage currentphase sequenceimpedance

The MI 3110 EurotestIM is a perfect tool for testing permanent Integrated or mobile IT Earthing Systems with Low Voltage Electrical Installation’s Power Supply from Generator or Transformer. MEASURING FUNCTIONS • Voltage, frequency and phase sequence • Line impedance and prospective short circuit current • Voltage drop • First fault leakage current (ISFL) • Testing of insulation monitoring devices (IMD) KEY FEATURES • AUTO SEQUENCE ®: One single AUTO SEQUENCE ® with programmable limits and sub-tests ensuring Safety on all PASS bar-rier parameters • Voltage monitor: IT System recognizing, Voltage Range and Voltage Balance • ISFL test: ISFL Single Fault Leakage current from Phase 1 and Phase 2 to PE. Fuse Trip-out Ability Evaluation, Line Impedance and Ipsc Prospective Short Circuit Current • IMD control: IMD Insulation / ELM Earth Leakage / RCM Residual Current Monitor Devices Control • IMD adjust: Alarm Trigger or Trip-Out Check and Adjust
