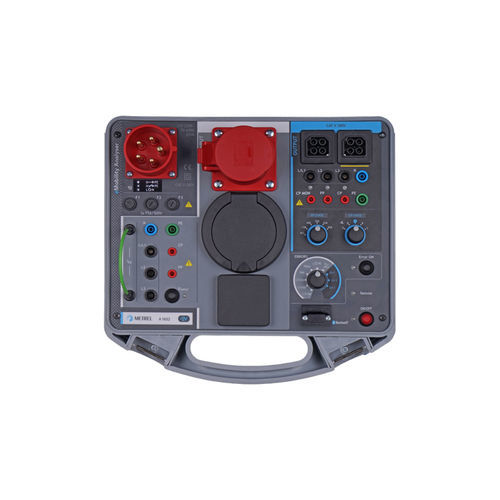

Electrical safety testing device A 1632 eMobility Analyser

simulationmanualfor electric vehicles

The A 1632 eMobility Analyser is a special accessory designed for diagnostic testing of Electric Vehicle Supply Equipment (EVSE) together with supported METREL testers. KEY FEATURES • Functional testing of EVSE via simulation of electrical vehicle’s CP and PP circuits • Diagnostic testing of EVSE via simulation of errors on CP circuit • Electrical safety testing of EVSE • Functional testing of Mode 2 EV cables via simulation of electrical vehicle’s CP and PP circuits • Diagnostic testing of Mode 2 EV cables via simulation of errors on CP circuit • Simulation of faults on mains for verification of Mode 2 EV charging cable safety features • Electrical safety testing of Mode 2 and Mode 3 EV cables • Accessible inputs/outputs for connection of safety testers. • 1-phase and 3-phase Mode 2 cable connections • Integrated 4400 mAh Li-Ion battery • Bluetooth communication with Metrel safety testers
