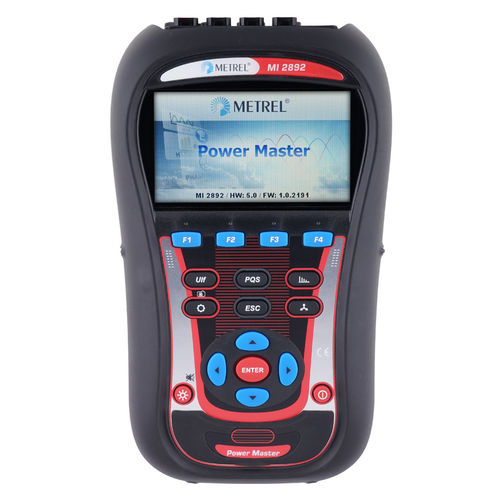

Electrical network analyzer MI 2892 Power Master

power qualityhandhelddigital

The MI 2892 Power Master is a hand-held three phase power quality ana­lyser with a large easy-to-read graphical colour display enabling the user to detect harmonics, phasors and waveforms anomalies in the installation simply by con­necting the device. MEASURING FUNCTIONS • Voltage: TRMS, peak, crest factor (4-channel) • Current: TRMS, peak, crest factor (4-channel) • Power (active, reactive, apparent) • Power measurements fully compliant with IEEE 1459 (active, non active, fundamental, harmonic, load un-balance) and classic (vector or arithmetic) method • Unbalance, flicker measurement • Harmonic and interharmonic analysis up to 50th harmonics, THD and TDD measurements • Energy (active, apparent, reactive, apparent, generated, consumed) • Capturing and recording of power supply events (shutdowns, interruptions, swells, dips) • Inrush currents monitoring and recording • Waveform/inrush displaying, snapshot and recording • Power quality analysis according to EN 50160, IEEE 519 • Recording up to 7 adjustable alarms • Temperature measurement • Power factor, cos fi and tg fi KEY FEATURES • Automatic Smart Clamp detection and Smart Clamp range selection • Sampling frequency on transients recording 49 kSamples/sec on 8 channels simultaneously • Compliance with power quality standard IEC 61000-4-30 Class A • Complete power quality analysis according to EN 50160 including signalling and interharmonics • PC SW PowerView3 • Flexible clamps (without additional power supply) are included in the AD/EU set • Remote communication via Ethernet • GPS clock synchronization (optional)
