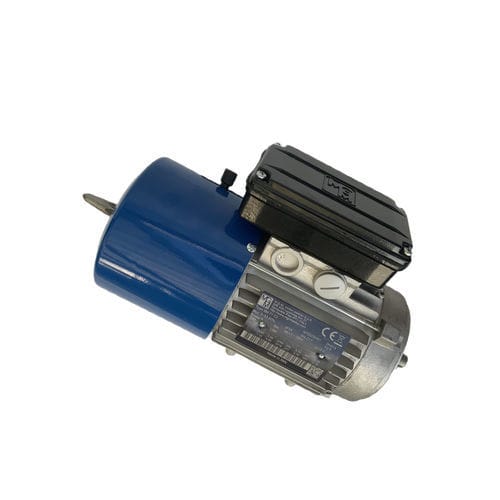

Three-phase brake motor BM series
asynchronousIP55IP54

three-phase brake motor
three-phase brake motor
three-phase brake motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
asynchronous
Protection class
IP55, IP54
Configuration
aluminum-frame, with DC brake, cast iron frame, compact
Efficiency classes
IE2, IE3
Number of poles
4-pole, 6-pole, 8-pole, 2-pole
Applications
for automatic doors
Other characteristics
NEMA, TEFC

Description

- Compact and silent brake motors with DC brake. - IEC Metric Motors from 56 to 225 mm - Totally Enclosed Fan Cooled (TEFC) - Power range from 0,04 up to 132 kW. Single speed 2,4,6,8 pole o double speed 2/4,4/8, - 2/8,2/6,2/12,4/6,4/12,4/16 pole - BMX series includes single speed brake motors for continuous duty and IE2 / IE3 efficiency class (regulation EU 2019/1781). Alternatively the BM series can be made in the ‘Enhanced Power’ version for intermittent duty only. - IP 54 enclosure (IP55 on request) - F class insulation - DC Brake - The cooling fan is fitted at non-drive shaft end - Low noise brake - Low Maintenance - Aluminum frame up to 132 frame size, cast iron frame from 160 to 225 frame size - Cast iron flanges starting from 100 frame size - Motors with NEMA dimensioned shafts and flanges available on request cCSAus mark and compliance to efficiency rule EISA (CC051A) and NRC (on request) - CCC mark and compliance to Chinese efficency rule and China Energy Label (on request) - BIS certification – ISI mark (on request) - EAC mark (on request)
