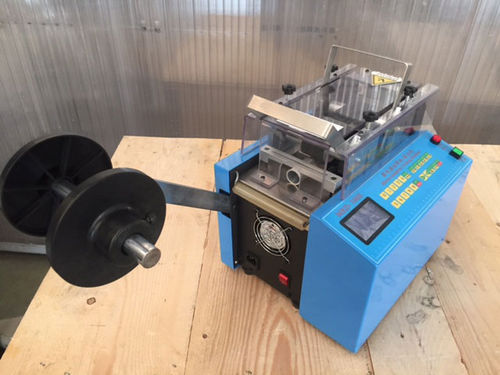

Cable cutting machine EASY PIPE
tubeprofileautomatic

cable cutting machine
cable cutting machine
cable cutting machine
cable cutting machine
cable cutting machine
cable cutting machine
cable cutting machine
Add to favorites
Compare this product


Characteristics

Product handled
tube, profile, cable
Other characteristics
automatic
Laser power

350 W

Overall length

350 mm
(14 in)

Height

320 mm
(13 in)

Weight

35 kg
(77.16 lb)

Description

It allows you to cut fully automatically and safely different types of soft material such as pipes, sheaths, ropes, flat cables, flat profiles etc. The ease of movement of the guides EASY PIPE is equipped with allows you to quickly switch to processing various diameters of material from 1 mm up to 100 mm in width (standard model). Superior cutting models allow the processing of material up to the following widths: 160 – 200 – 300 – 400 – 500 – 600 – 700 mm. Furthermore, parameters such as material feeding speed, cutting head speed, management of the number of pieces in each batch, etc. can be quickly changed. – Control: RAM control system – Display: LCD Full English – Pipe diameter: up to 18mm – Optional: Cut soft sheath up to 100 mm of width – Speed: 70-100 pcs / min. (L = 100mm) – Accuracy: 0.002 mm X L (L = Cutting Length) – Tube length: 1 mm to 10 meters

VIDEO

Catalogs

EASY PIPE
EASY PIPE
1 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
