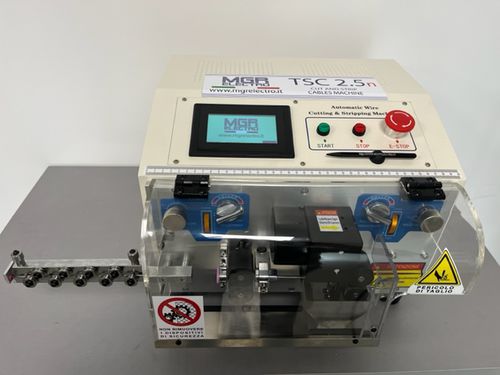

Cable cutting and stripping machine TSC 2,5

programmablewith touch screen

Electronic cable stripper that offers the possibility of processing unipolar cables from 0,25 to 6 mmq, multipolar cables up to 7 mm in external diameter with a maximum length of 100 meters. The intuitive touch screen in Italian/English, the ease of interchanging accessories such as wire guides, blades, etc. and the ability to store up to 99 different operational programs make this equipment very easy to use. Moreover, its software page allows the online use and therefore the management of modern systems for stamping, stacking and unwinding / coiling of electrical cables. – SUPPLY VOLTAGE: 230V/50Hz (1P + N) – TOTAL RATED POWER: 680 W – POWER OF INTERRUPTION: 6 KA – CONTROL CIRCUIT VOLTAGE: 24 Vdc – CLASS PROTECTION AGAINST INDIRECT CONTACTS: I – DEGREE OF PROTECTION OF SOLID/LIQUID BODIES DECLARED: IP20 – WEIGHT: 28 Kg – DIMENSION: 470x450x350 mm – LENGTH OF CUT: 0,1 ÷ 99.999,99 m – CABLE CUTTING TOLERANCE: ≤ 0.002xL (L= length of cut) – CABLE STRIPPING: Head 0 ÷ 30 mm / Tail 0 ÷ 70 mm – SECTION: 0,1 ÷ 6 mmq unipolar – SPEED OF STRIPPING: 2.000 ÷ 8.000 pcs/h L= 100 mm
