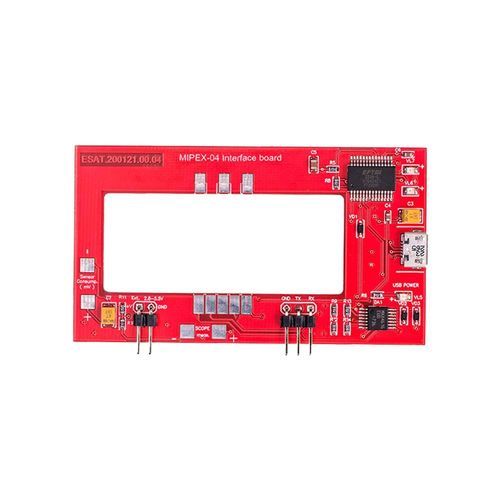

Sensor interface card MIPEX-04

USBindustrial

The universal MIPEX-04 interface board is standardized for MIPEX-04 sensors and included in the MIPEX Evaluation Kit. USB power supply eliminates the need for external sources, and UART support enables integration with automated systems. The MIPEX Interface Board serves as the central element of the test bench for calibration and verification of MIPEX-04 infrared gas sensors. It enables data transmission between the sensor and a PC. When used together with gas supply adapters and the MIPEX ETS software, it supports a full testing cycle in laboratory or production environments. - Automatic COM-port detection upon connection - Intuitive form factor: unified dimensions and mounting holes for enclosure integration - Temperature range: –40 to +60 °C; suitable for use in climate chambers - Optimized for use with MIPEX calibration adapters and MIPEX ETS software The MIPEX-04 interface board enables high-precision data communication with NDIR sensors. It connects to a PC via USB or, optionally, via UART with 3.3V sensor power supply. The board automatically detects the available COM port in the system. When used with MIPEX ETS software, it supports full-scale calibration (zero and span), real-time data visualization, log saving, and data transmission to technical support. Advantages: - Plug & Test: USB-powered, no external power blocks required - Hybrid connectivity: USB and UART with external 3.3V power supply - Current monitoring: dedicated test points for sensor current measurement (external device required) - Standardized design: full compatibility with MIPEX-04; backward-compatible with MIPEX-02 when used in the Evaluation Kit Parameter: Value - Product type: Accessory - Compatibility: MIPEX-04, MIPEX-14 - Connection: USB; UART with external 3.3 V power - Power Supply: USB 5 V, up to 500 mA - Current Measurement: Yes (requires external measurement unit) - Operating Temperature: –40 to +60 °C - Dimensions: 75 × 42.1 × 1.5 mm - Mounting: Ø3 mm screw holes - Features: Auto port detection; MIPEX ETS optimized - Central element for calibration and verification of MIPEX-04 infrared gas sensors - Supports data transmission between sensor and PC - Compatible with MIPEX ETS software for full testing cycle - Suitable for laboratory and production environments
