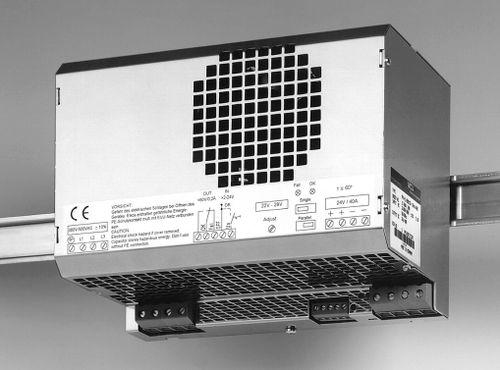

AC/DC power supply PH1003-2440single-outputadjustableswitching
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- single-output, adjustable
- Technology
- switching
- Mounting
- DIN rail, wall-mount
- Certifications
- CE
- Features
- compact
- Input voltage
Max.: 550 V
Min.: 340 V
- Output voltage
24 V
- Current
40 A
Description
– Optional power factor correction (PFC)
– IT-Net suitable
– Mains input protected by fuse
– Mains buffering 15 - 27 ms
– Output adjustable
– Parallel connection with load sharing
– Power boost with high start-up current
– Output SELV according to EN 60950
– Diverse control and load signals
– Primary/secondary overvoltage protection
– Overtemperature protection
– Operational in every installation position by integrated fan
– EMC standards EN 50081-1 and EN 50082-2
Catalogs
PH1003
2 Pages
