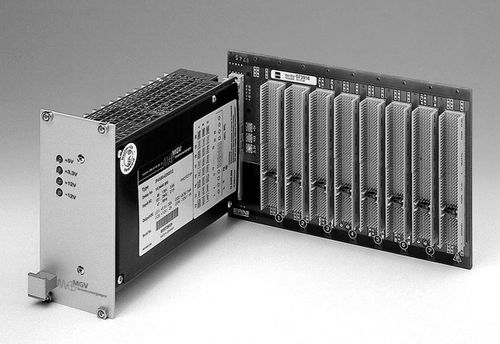

DIN rail power supply DG4120-1/2G3UAC/DCmultiple-output
Add to favorites
Compare this product
Characteristics
- Mounting / format
- DIN rail, 3U
- Type
- AC/DC
- Output
- multiple-output
- Certifications
- CE
- Other characteristics
- high-performance
- Input voltage
Min.: 8.5 V
Max.: 36 V
- Output voltage
-12 V, 3.3 V, 5.1 V, 12 V
- Current
1 A, 2 A, 14 A
- Power
Min.: 75 W
Max.: 200 W
Description
– DG 4150R: For redundancy operation, Hot-plug
– EMC Standards EN 50081-1 and EN 50082-2
– All outputs permanent short-circuit proof
– Output SELV according to EN 60950
– Primary/secondary overvoltage protection
– Overtemperature protection
– Control inputs: ENABLE, INHIBIT
– Signal outputs: DERATE
– Assembly kit for DIN-rail or wall mounting
Catalogs
DG4120
2 Pages
