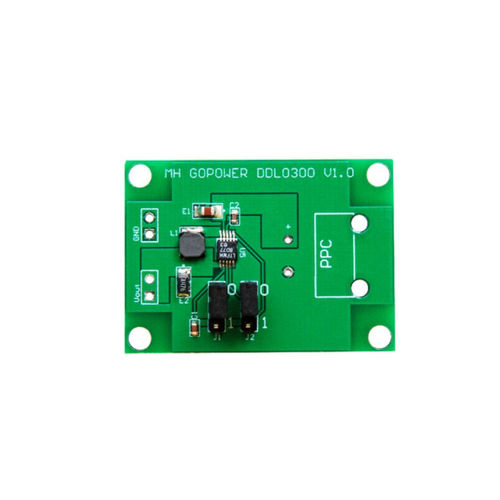

Step-down DC/DC converter DD seriesopen-framepowerlow quiescent current
Add to favorites
Compare this product
Characteristics
- Configuration
- open-frame
- Electrical characteristics
- step-down, power
- Other characteristics
- low quiescent current
- Input voltage
Min.: 2.5 V
Max.: 42 V
- Output voltage
Min.: 0.8 V
Max.: 41 V
- Power
0.2 W, 0.4 W, 4.1 W, 140 W, 143 W
Description
provides high efficiency step-down DC/DC converter modules which is capable of supplying up to 5A of load current. With 2.7V to 42V wide operating range, users can set output voltage up to 41V by pin selection. DD Series also incorporates undervoltage lockout (UVLO) safety feature to disable the converter and maintains a low quiescent current state when the input voltage falls below UVLO. Though DD series products are designed for MHGP’s YCH-L and YCH-H series PPCs, they can also be used as a general purpose step-down DC/DC converter.
DD Series Features:
Up to 5A of Output Current
Efficiency up to 90%
DD Series Applications:
Power over Fiber (PoF)
Remote Sensors
Portable Products
Battery-Operated Devices
