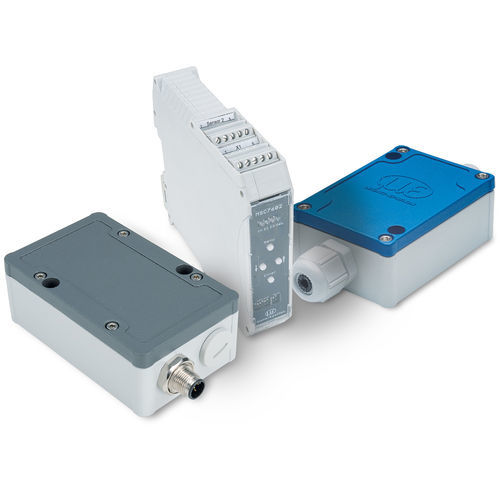

Displacement sensor controller induSENSOR MSC7x0x

industrial

Overview
The MSC7x0x series controllers are designed for use with LVDT and LDR displacement probes and sensors. Compact aluminium housings and variants for DIN-rail installation make the series suitable for industrial automation and machine-building measurement tasks. Quick parameterisation is available via front-panel keys or dedicated software.
Functions and applications

• Compatible with LVDT displacement sensors and half-bridge (LDR) probes
• Available in single-channel and multi-channel variants (examples: MSC7401, MSC7802, MSC7602)
• Bus connector versions reduce wiring effort in multi-unit installations
• Fast commissioning and configuration via onboard keys or software

Main features

• Universal operation for inductive displacement sensors (LVDT/LDR)
• High resolution and good linearity for precise displacement measurement
• Cost-efficient multi-channel solutions for series integration
• Suitable for serial production and automated machinery integration
• Local parameterisation via keys and remote configuration via software

Variants and model detailsMSC7401:
single-channel controller, compact aluminium housing, IP67 versions available, options with plug or cable gland

• MSC7802: two-channel controller, compact aluminium housing (IP67), rear bus connector to reduce wiring, parameterisation via keys or software
• MSC7602: two-channel DIN-rail controller, synchronisable multi-channel operation, bus connector for simplified multi-unit installation
