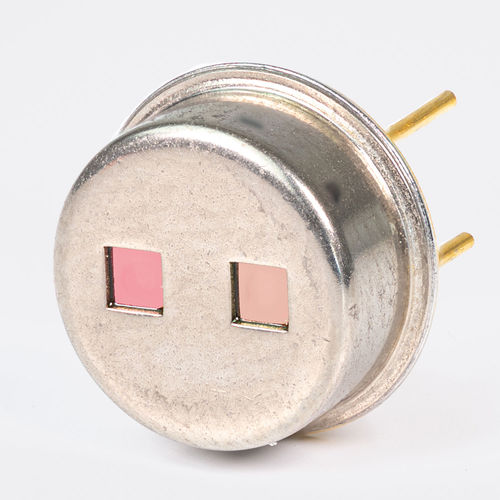

Carbon dioxide detector PS2x4C2-A-U-S1.5-Kr-E1/D2

infraredpyro-electricindustrial

The narrow band filter of the MPS2SENS carbon dioxide with a CWL of 4265 ± 25 nm and a HBW of 120 ± 10 nm is optimized for the measurement of carbon dioxide (CO2) with reference channel (CWL: 3910 ± 28, HBW: 70 ± 10 nm). The detector suits for demanding applications in medical, industry and environmental technology. With its very high read-out rate of up to 100 Hz and a short response time, it provides precise measurement results reliably and quickly. The pyrodetector MPS2SENS carbon dioxide is based on 2 chips with a thin film CPM membrane. Thanks to the Ceramic Pyroelectrical Material (CPM) the detector features a very high detectivity of up to 4.0*10^8 cm√Hz/W and sensitivity of up to 200000 V/W. The signal quality of our pyroelectric sensors is unchallenged. The detector operates within ambient temperatures ranging from -20 to 85 °C and covers a wide range of applications: NDIR gas analysis, industrial process and exhaust gas measurement, and respiratory gas monitoring.
