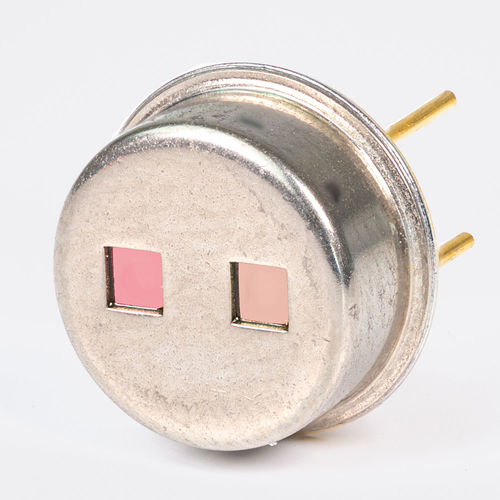

SF6 detector PS2x4C2-A-U-S1.5-Kr-J1/D5

infraredpyro-electricindustrial

Two channel premium pyrodetector detector on TO39 header for measurement of sulfur hexafluoride (SF6). The detector suits applications of industrial gas measurement or monitoring of insulation gases in the field of production and process engineering at ambient temperatures between -20 and 85 °C. With a CWL of 10540 ± 100 nm and a HBW of 690 ± 100 nm, the narrowband optical filter provides ideal values for precise analysis of the target gas. In addition, there comes a reference channel with the CWL: 5060 ± 25 as well as the HBW: 100 ± 15 nm. With a very high detectivity of up to 4.0*10^8 cm√Hz/W and sensitivity of up to 200000 V/W, the signal quality remains unique in this technology range. The detector features a broad spectral sensitivity 2 - 15 µm (optimized from 3 - 5 µm), a high sensitivity with a modulation frequency of up to 100 Hz, a low microphone effect due to the small membrane mass, very low temperature dependence and an amplified signal in current mode.
