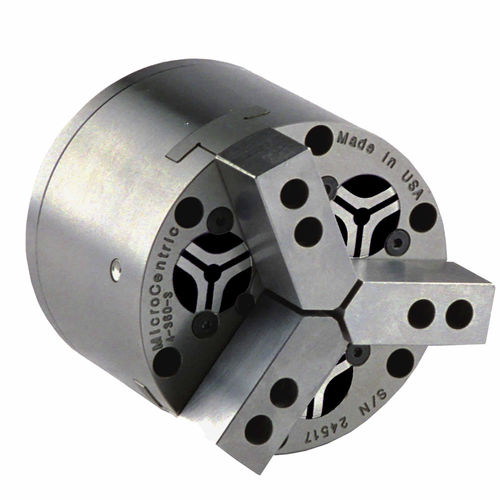

Power chuck Long Stroke Air Chucks3-jawlatheclamp
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 3-jaw
- Other characteristics
- lathe, clamp, pneumatic, stationary
- Rotational speed
2,000 rpm, 2,500 rpm, 3,000 rpm, 4,000 rpm
(12,566.37 rad.min-1, 15,707.96 rad.min-1, 18,849.56 rad.min-1, 25,132.74 rad.min-1)- Gripping force
6.8 kN, 12.1 kN, 25.4 kN
- Outer diameter
100 mm, 150 mm, 200 mm, 250 mm
(4 in, 6 in, 8 in, 10 in)
Description
Long stroke air chucks feature extended jaw opening for load clearance or to clamp a range of diameters without changing top jaws. Long stroke chucks are available in rotating and stationary configurations. Their high accuracy makes them ideal for clamping headed workpieces for turning, grinding, or milling/drilling applications. Special models with total jaw stroke of .500" (12.7mm), .750" (19.1mm), and 1.000" (24.5mm) are also available. Please call for information.
Chuck Accuracy
.00005" (0.0012mm) TIR is standard
.00002" (0.0005mm) TIR is available
Catalogs
Air Chuck Catalog
24 Pages
