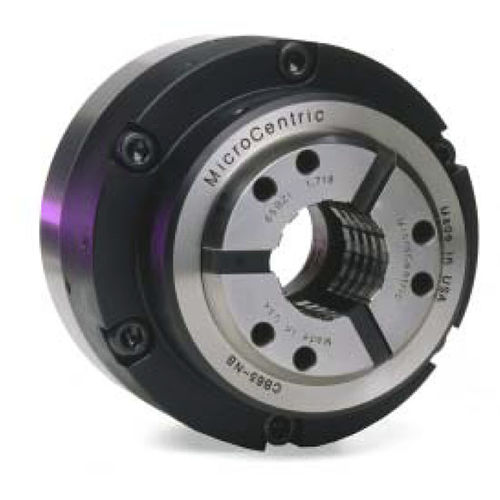

SK collet chuck CB-NB
for machiningfor CNC lathesquick-change

SK collet chuck
SK collet chuck
Add to favorites
Compare this product


Characteristics

Machine mount
SK
Application
for machining
Other characteristics
for CNC lathes, quick-change, precision, radial
Clamping range

0.5 mm, 1 mm
(0.02 in, 0.04 in)

Rotational speed

4,000 rpm, 4,500 rpm, 5,000 rpm, 6,000 rpm
(25,133 rad.min-1, 28,274 rad.min-1, 31,416 rad.min-1, 37,699 rad.min-1)

Description

In the CB-NB series collet chucks, the collet is coupled directly to the draw tube connector. As the draw tube is actuated, the collet is drawn into the tapered seat of the chuck body, efficiently translating draw tube force into maximum clamping force. CB-NB Features Pull Back design maximizes the efficiency of the clamping system by concentrating all forces in the direction of the spindle for highest accuracy and greatest overall rigidity Low profile OD and short overall length provides increased tool clearance and maximum utilization of the machine's Z axis Radial adjusting screws Lubricated for life design requires minimal maintenance All components hardened and precision ground for highest accuracy and long life Spindle speeds up to 6,000 rpm.
