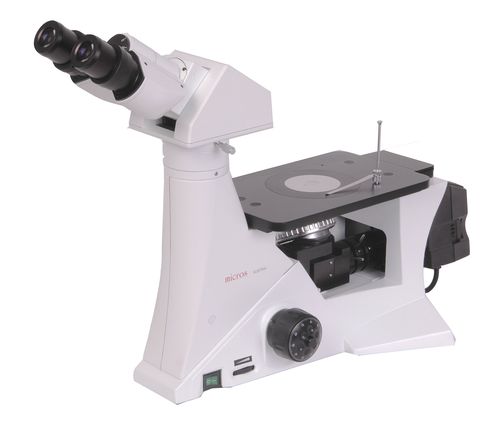

Inverted Metallurgical Microscope
Inverted microscopes are used for inspection, analysis and testing of microstructure of materials. The special design is necessary for observing large and heavy objects, e.g. metallurgical or electronic parts which are integrated in a compact body without special and expensive sample preparation.
Objectives: MET ICO PLAN 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.75; Eyepieces: EWF 10x/22 high eyepoint
Body: stable, sturdy base, 360 x 280 mm; Head: ERGO head with variable inclination from 5° to 35°; Nosepiece: Quintuple ball-bearing nose-piece; Stage: Plain stage with glass insert plate; Illumination: 6V30W halogen for 100 - 240V / 50 - 60 Hz
Photo/video port for ERGO head, binocular or trinocular head, objective MET ICO PLAN 100x/0.9, WD 0.7 mm, various eyepieces, attachable mechanical stage, auxiliary stages, photo/video adapters, digital cameras, aluminium carrying case
