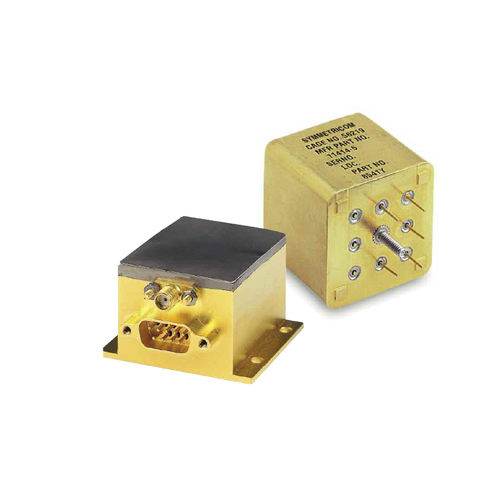

The 9600 meets the challenges of many military and space specifications for time and frequency, even under adverse environmental conditions.
The 9600 features an SC-cut quartz resonator and sustaining electronics that are controlled at a precise temperature to achieve temperature insensitive performance, excellent short-term stability, phase noise, and aging characteristics.
Miniaturization Without Compromise
The use of hybrid circuitry allows for the greatest possible reduction in size without compromises in performance or reliability.
Compact Form Factor Designed for Mobility
This rugged, compact crystal oscillator is especially advantageous when used in mobile, transportable, and portable applications where fast warm-up, low power consumption, and small size are required.
Mil Spec Manufacturing
Assembly is performed by skilled operators certified to IPC-J-STD-001ES workmanship standards. Hybrid circuits are produced at facilities qualified to MIL-PRF-38534C. All discrete components are manufactured and tested to Grade 2 or optionally Grade 1 requirements per MIL-STD-975.
Key Features
Output frequency: 4 MHz - 60 MHz
Warm-up time: <5 minutes from 25 ºC
Fast warm-up option available
Low power consumption: <1.3W @ 25 ºC (in vacuum)
Compact sizes - Typical: 1.33" x 1.33" x 1.33"
Frequency aging:
5 MHz: <5.0E-11/day, <1.5E-8/year
10 MHz: <3.0E-10/day, <4.0E-8/year
Frequency change vs. temperature: ±4.0E-9 (-40 ºC to 65 ºC)
Low-g sensitivity option available
