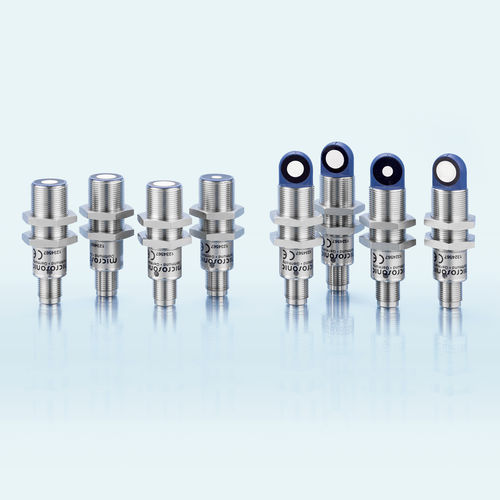

Cylindrical distance sensor lpc+ series

ultrasonic4-20 mA0-10 V

lpc+ well equipped: 2 Push-Pull switching outputs or 1 Push-Pull switching output with an analogue output in M18 housing. Highlights Analogue output 4–20 mA or 0–10 V plus 1 Push-Pull switching output in M18 design IO-Link interface for support of the new industry standard Smart Sensor Profiles more transparency between IO-Link Devices Improved temperature compensation adjustment to working conditions within 120 seconds UL Listed to Canadian and US safety standards Basics 2 Push-Pull switching outputs pnp or npn basis 4 detection ranges with a measurement range of 20 mm to 1.3 m microsonic Teach-in on pin 5 0.1 mm resolution 10–30 V operating voltage LinkControl for configuration of sensors from a PC Description The lpc+ ultrasonic sensors are optionally equipped with two Push-Pull switching outputs or an analogue output plus a Push-Pull switching output. The compact series with M18 threaded sleeves coves four detection ranges from 20 mm to 1.3 m. Ultrasonic sensors with the Push-Pull output stage support SIO and IO-Link modes. Sensors with analogue output are optionally available with 4–20 mA current output or 0–10 V voltage output. In SIO mode, sensors are configured using the microsonic Teach-in procedure on pin 5. Ultrasonic sensors with switching output have three operating modes: Single switching point Two-way reflective barrier Window mode Teach-in of a single switching point Place object to be detected (1) at the desired distance Apply +UB to pin 5 for about 3 seconds Then apply +UB to pin 5 again for about 1 second Teach-in of a two-way reflective barrier with a fixed reflector Apply +UB to pin 2 for about 3 seconds
