Ultrasonic proximity sensor nano series

cylindricalM12digital

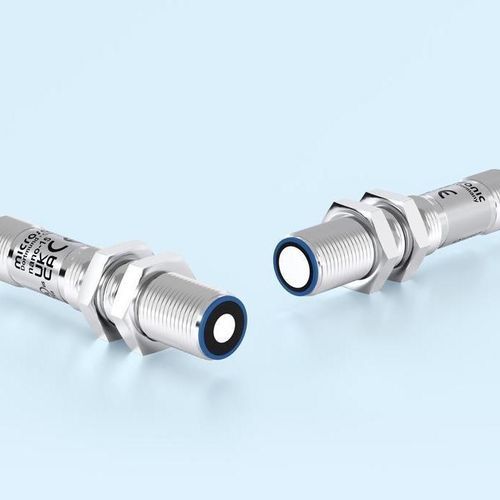

nano – what‘s in a name? At just 55 mm long, including plug, the nano is the shortest M12 ultrasonic sensor on the market. Highlights Ultrasonic sensor in the M12 threaded sleeve IO-Link interface for support of the new industry standard Improved temperature compensation adjustment to working conditions within 45 seconds UL Listed to Canadian and US safety standards Basics 1 Push-Pull switching output pnp or npn basis microsonic Teach-in on pin 2 0.069 mm resolution Operating voltage 10–30 V for use with various voltage networks Description nano sensors with switching outputs are the smallest ultrasonic sensors inside the M12 threaded sleeve on the market. Analogue sensors are 60 mm long. nano has a 4-pole M12 circular plug and are taught via pin 2. The temperature compensation of the sensors profits from a significant improvement. The sensors reach their operating point only 45 seconds after activation of the operating voltage. We now compensate for the influence of self-heating and installation conditions. This brings improved precision shortly after activation of the supply voltage and in running operation. New! With the internal alignment assistance the sensors with Push-Pull switching output can be optimally aligned to the object during installation. The nano sensors with switched output have three operating modes: Single switching point Two-way reflective barrier Window mode Teach-in of a single switching point Place object (1) to be detected at the desired distance Apply +UB to pin 2 for about 3 seconds Then apply +UB to pin 2 again for about 1 second Teach-in of a two-way reflective barrier with a fixed mounted reflector.
