Ultrasonic level sensor mic series

for solidsfor sludgefor liquids

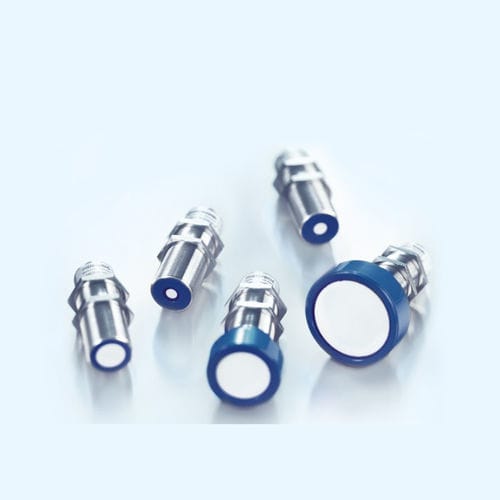

These completely metal mic sensors are available in two device designs with five different detection ranges. Highlights M30 housing and M12 circular connector in metal design for harsh usage conditions Automatic synchronisation for simultaneous operation of up to ten sensors in close quarters UL Listed to Canadian and US safety standards Basics 1 switching output in pnp variant Analogue output 4–20 mA and 0–10 V with automatic switching between current and voltage outputs microsonic Teach-in on pin 5 0.18 mm to 2.4 mm resolution Temperature compensation 9–30 V operating voltage LinkControl for configuration of sensors from a PC This very solid construction is fully made of metal from the M30 housing to the M12 circular connector. Since the sensors do not contain any operating elements or signal lamps, they are especially suited for application under extreme ambient conditions with high mechanical loads for housing and plug connector. The sensors are available in five detection ranges and cover a measuring range of 30 mm up to 8 m. Two output levels are available for all five detection ranges: - 1 pnp switching output Sensors with switching output have three operating modes: Single switching point Two-way reflective barrier Window mode Teach-in of a single switching point Place object to be detected (1) at the desired distance Apply +UB to pin 5 for about 3 seconds Then apply +UB to pin 5 again for about 1 seconds Teach-in of a two-way reflective barrier with a fixed reflector Apply +UB to pin 5 for about 3 seconds Then apply +UB to pin 5 again for about 10 seconds For configuration of a window Place object at the near edge of the window (1)
