Curve radius measuring system

direct-contactlaboratoryUSB

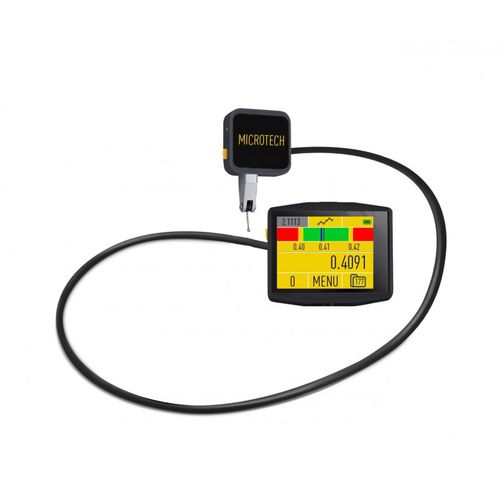

MICROTECH manufacturing Tablet Sub-micron dial test indicator with external probe adopted to Industry 4.0 Tablet lever indicators are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution. Computerized Tablet dial test indicators can be using for precision linear measuring or in custom stands and devices for Radius, Sphere and others. External probe can be with length 2-10m that gives wide range of installation possibilities. TABLET measuring module of indicator has such functions : ON-line GRAPHICAL mode Color ANALOG adjustable scale HUB Connection (external MICROTECH Wireless device connection) 2D Connection possibilities (external device Wireless connection and indication) PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode Internal MEMORY for 2000 values with Folders system and statistic, LIMITS (Go/NoGo) function with color indication, PEAK (Max/min), TIMER FORMULA Ax2+Bx+C, RADIUS, SPHERE Manual TEMPERATURE COMPENSATION LINEAR compensation RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches CALIBRATION date control Rechargeable Li-Pol battery with micro-USB socket FIRMWARE Update with USB cable WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app's WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities USB HID data transfer to any system and app (keyboard mode) with data config possibilities
