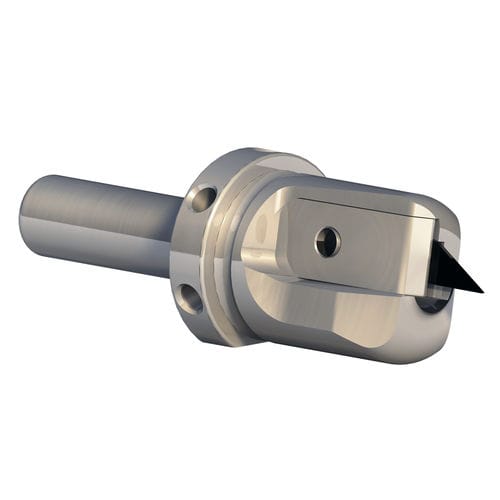

Solid milling cutter FPS300700 series
insertprofilingPCD

solid milling cutter
solid milling cutter
solid milling cutter
solid milling cutter
Add to favorites
Compare this product


Characteristics

Construction
solid, insert
Type
profiling
Material
PCD
Treated material
for aluminum, for wood
Other characteristics
high-precision, cutting
Diameter

25 mm
(0.98 in)

Length

85 mm, 90 mm
(3.35 in, 3.54 in)

Rotational speed

24,000 rpm
(150,796.45 rad.min-1)

Description

HIGH PRECISION SHANK CUTTER WITH INTERCHANGEABLE PCD INSERTS Z1 FOR “V“ ENGRAVINGS AND PROFILE Insert PCD shank cutter with interchangeable profiled knife Z=1. Suitable for profiling or engravings operation on different materials such as solid wood, laminated chipboard panels, playwood MDF, HDF, HPL, Trespa, Corian, Carbon fiber panels (CFRP), Teflon, plaxiglass, aluminnium and others plastic materials. So many are the advantages of this tool: Constructive geometries that eliminate any mismatch between the cutter body and the PCD insert ensuring high positioning of inserts and repeatability. Another advantage is that the PCD insert is worked in a cold conditions without undergoing any kind of stress due to welding operation. So the PCD inserts keep all the features, increasing the tool life and cutting quality. ADDITIONAL INFORMATION ROTATION Right ENGAGED TIPS 1 ALTEZZA PCD 3,5 mm ASSIALE ELICA POS/NEG Positive AXIAL ANGLE 2° TOOL BODY Steel FEEDING SYSTEM Manual, Mechanic ANTI-NOISE SYSTEM Yes MATERIALS Aluminum, CRFC Carbon, Hard wood, HPL Corian, Light wood, MDF HDF, Painted, Particle board double face laminate, Plexiglass, Plywood double face laminate
