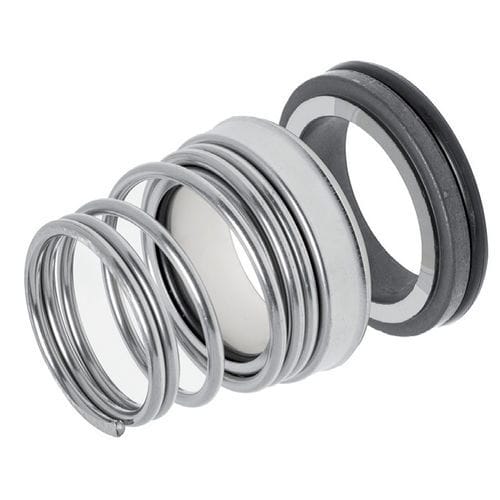

Spring mechanical seal MTM 20_21
for pumpfor shaftsfor mixers

spring mechanical seal
spring mechanical seal
Add to favorites
Compare this product


Characteristics

Type
spring
Applications
for pump, for shafts, for mixers
Material
stainless steel, NBR, ceramic, carbon
Domain
for process industry, for the pharmaceutical industry, for wastewater treatment, for OEM, for marine applications
Other characteristics
conical, toroidal
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232 psi)

12 bar
(174 psi)

Operating temperature

Min.: -50 °C
(-58 °F)

Max.: 180 °C
(356 °F)

Description

The MTM 25_26, manufactured by MICROTEM, is a conical spring mechanical seal that can compensate positioning errors and withstand stresses created by vibrations. The contact surface can be made with silicon carbide, aluminum oxide, tungsten carbide and carbographite. The elastomer materials are NBR, EPDM and FPM/VITON. This device features a stationary ring, a rotary ring insert, an elastomer stationary ring, an elastomer rotary ring and a spring. It can be made with graphite, silicon carbide or tungsten carbide. Other construction materials include Nbr, Viton, EPDM as well as 304 and 316 stainless steel. The spring is made of stainless steel.
