Cartridge mechanical seal MTM 600for pumpsfor agitatorsfor compressors

cartridge mechanical seal
cartridge mechanical seal
Add to favorites
Compare this product
indicative price

Characteristics

Type
cartridge
Applications
for pumps, for agitators, for compressors
Operating pressure

928 psi

Operating temperature

Max.: 428 °F (220 °C)

Min.: -40 °F (-40 °C)

Description

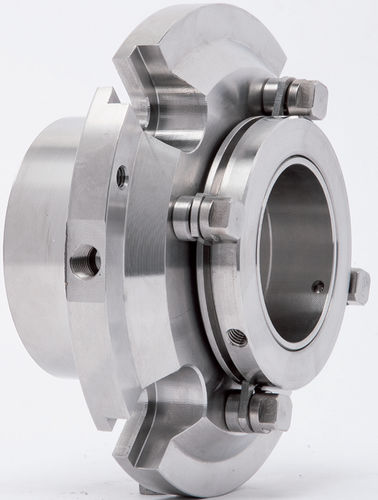

The MTM600 is the series of cartridge mechanical seals for general applications perfectly interchangeable with all other cartridge solutions existing on the market. They are available in a variety of configurations, with flanges for the dead-end execution (MTM601/604), with a quench connection and a secondary lip seal (MTM602/605/607) or with a secondary labyrinth seal (MTM603/606/608). They are easy to install and they are provided with significant thicknesses in key parts such as sleeved shaft and rotating parts. They can be equipped with a seal of the series MTM170 or MTM180, and even with a metal bellows seal (MTM100). The series of cartridge seals MTM600 also provides technologically advanced solutions such as MTM610/611/612. They can be produced in materials like Hastelloy, Inconel and Duplex and are suitable for all types of installation.
