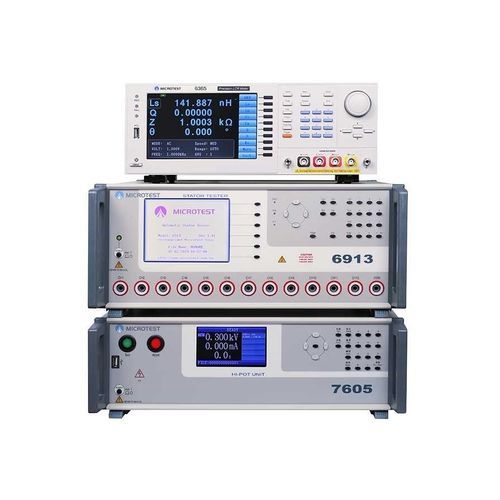

Stator winding tester MT-6913

leakagesurge impulseinsulation resistance

Features ■ 13 Channels ■ Hipot/Leakage Current ■ Insulation Resistance ■ Winding Layer short Test ■ Steering test ■ Inductance Test ■ It can test multiple sets of DUTs simultaneously ■ 4-Wire DC Resistance measurement will be more accurate than others ■ The Impulse/Surge with waveform comparison is a non-destructive analysis ■ Chinese/English screen could be switched arbitrarily MICROTEST MT-6913 motor stator testing system provides 13 channels for testing. It enables polarity (rotation direction) testing of motor stators and utilizes precise four-wire measurement technology to measure DC resistance. It integrates safety withstand voltage insulation and inter-coil short circuit testing in a single system. It supports PC connectivity software for remote programming and storage of test data. The system can be PLC-controlled and can accommodate customized testing fixtures for customer-provided stators. Additionally, an optional LCR meter can be selected for inductance value testing of the stator, with a testing frequency range of 10Hz to 200kHz, including support for three-phase balanced inductance testing.
