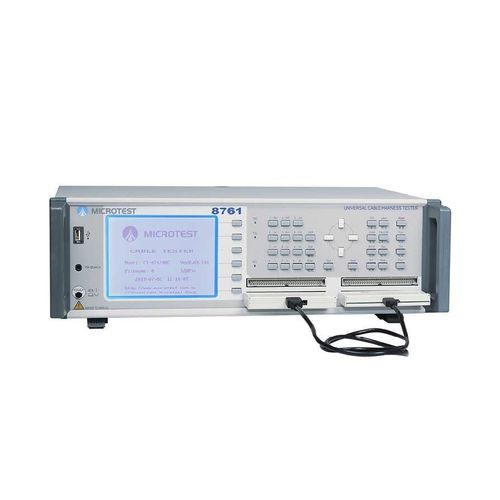

USB tester 8761NAC

insulationresistanceHipot

Features ■ 4-wire measurement conductance 1mΩ-52Ω ■ Test pin 64/128 ■ E-Marker IC Test ■ Voltage Drop Test (5A) ■ Open/Short ■ Cond. Resistance test ■ AC/DC Hipot Test ■ DC insulation ■ Support bar code scan and print function ■ Automatically identify the normal or reverse plugin of wire or connectors For USB Type-C cable/connector testing, the dedicated option MICROTEST 8761NAC is available. It utilizes a four-wire measurement technology and supports automatic detection of USB Type-C loop orientation for connectors. It offers a maximum AC withstand voltage of 700V and a maximum DC withstand voltage of 1000V. It is equipped with the FX-000C28 2-in-1 current source expansion box, which provides the capability to perform continuity impedance, open/short circuit, safety withstand voltage insulation, RA resistance, and filtering capacitor tests on USB Type-C cables/connectors. By selecting the FX-000C28 2-in-1 current source expansion box, it is possible to conduct 5A voltage drop internal resistance testing and VDO code reading for E-Marker IC on USB Type-C cables.
