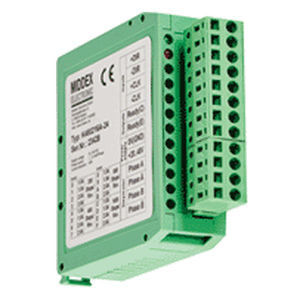

Two-phase stepper motor control K480216ADCDIN rail mounted
Add to favorites
Compare this product
Characteristics
- Motor type
- two-phase stepper, DC
- Other characteristics
- DIN rail mounted
- Input voltage
Max.: 48 V
Min.: 20 V
- Current
Max.: 3.5 A
Min.: 1 A
Description
Application: Step motor driver for 2-phase step motors
Supply voltage: 20...48VDC, momentary 52VDC
Motor current/phase: 1.0/1.5/2.0/2.5Aeff; 1.4/2.1/2.8/3.5Apeak
Step resolution: 200/400/800/1600 steps/revolution
Signal triggering: Pulse/direction, opto-decoupled, 5V or 24V
Output signals: Ready, opto coupler
Dimensions: Approximately 79x25x86mm (HxWxD)
Mounting/housing: DIN rail/plastic housing
Features: Low heat generated without forced cooling
