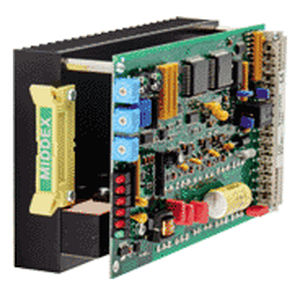

Two-phase stepper motor control B1601224ADC
Add to favorites
Compare this product
Characteristics
- Motor type
- two-phase stepper, DC
- Input voltage
Max.: 160 V
Min.: 35 V
- Current
Max.: 17.7 A
Min.: 2 A
Description
Application: Step motor driver for 2-phase step motors
Supply voltage: 35...160VDC
Motor current/phase: 2.0 to 12.5Aeff; 1.8 to 17.7Apeak
Step resolution: 200/400/500/800/1000/1600 steps/revolution
Signal triggering: Pulse, direction, disable, reset, boost, step resolution
Output signals: Ready, zero-phase
Dimensions: Approximately 100x80x160mm (HxWxD)
Mounting/housing: Euro card
Features: Adjustments for standstill, run, and boost current
