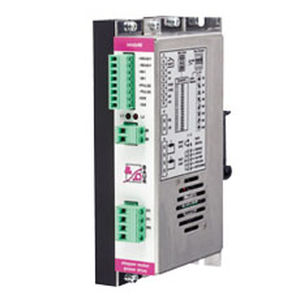

Two-phase stepper motor controller SMDx98three-phase stepperDCDIN rail mounted
Add to favorites
Compare this product
Characteristics
- Motor type
- two-phase stepper, three-phase stepper, DC
- Other characteristics
- DIN rail mounted
- Input voltage
Max.: 130 V
Min.: 24 V
- Current
Max.: 10 A
Min.: 1 A
Description
Wall mount DIN-Rail
Application: Step motor driver for 2 & 3-phase step motors
Supply voltage: 24V...130V
Motor current/phase: 1,0A...10Apeak
Step resolution: 200 to 10000 steps/revolution
Signal triggering: Pulse/direction up to 250kHz
Output signals: Ready, opto-decoupled
Dimensions: Approximately 157x29x80mm (HxWxD)
Mounting/housing: DIN rail/wall mounted/metal housing
Features: - Automatic setting of the operating parameters
- Automatic current reduction at standstill
