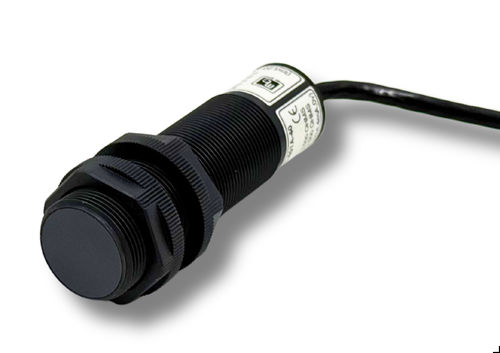

Ultrasonic proximity sensor RPS-401A series

cylindricalM12 connectorbare wires

Adjustable Zero & Span Various Sensing Ranges Narrow Sensing Beam LED Strength Indicator Short Circuit Protected Reverse Polarity Protected Analog Current & Voltage Outputs Inverted & Non-Inverted Outputs Self Contained Barrel Housing The RPS-401A is an ultrasonic sensor housed in a PVC barrel and powered by 20–30 VDC with reverse polarity protection. Its narrow beam enables accurate sensing in tight spaces, with reliable detection of flat targets up to 8° off-axis. The sensor provides short circuit protected 4–20 mA and 0–10 VDC outputs that can be inverted and scaled using onboard near and far adjustments. Available in 4–40 inch or 8–80 inch ranges, it includes a multi-color LED signal strength indicator and is supplied with either a standard cable or quick-disconnect option for flexible installation. Specifications: Reverse Polarity Protected Input Current: - 90mA Humidity: - 0 – 95% Non-Condensing Housing: - RPS-401A – PVC with PVC sensing face RPS-426A – 303 Grade Stainless Steel with PPS and PTFE sensing face Outputs: - Analog Current Sourcing Output 4 – 20mA Inverted & Non-Inverted Load 0 Ohms to 500 Ohms Analog Voltage Output
