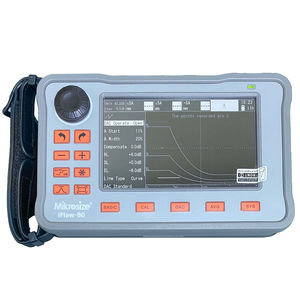

Ultrasonic flaw detector iFlaw-920

portabledigital

●High-precision quantification and positioning to meet the requirements of near and far distance detection ●The near-field blind zone is small, can meet the detecting requirements for small-diameter and thin-walled pipe. ●Auto calibration function:one-button auto calibration,easy to operate, automatic test probe “P Delay”,”K value”,”X value” and the velocity ●Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,dB,ф ) ●Switch three scales freely(Depth:d, Horizontal:p,Distance:s) ●Auto gain, peak envelope, peak memory functions, which can improve the detection efficiency. ●Automatically record the flaw detection process and dynamic playback ●φ value calculation：Forging flaw detection by straight probe, can find the highest wave to conversion φ value automatically ●500 independent channels(can be expandable), which can input and store the detection standards of any industries freely, do not need to carry the standard blocks for on-site inspection. ●Store, playback 500 A-scan waves and data freely ● The DAC, AVG, and TCG curves (depth compensation) are automatically generated and can be segmented. The sampling points are unrestricted and can be corrected and compensated. ●14 built-in inspection standards Digital ultrasonic flaw detector is advanced type, which is touch screen, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the work-piece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery
