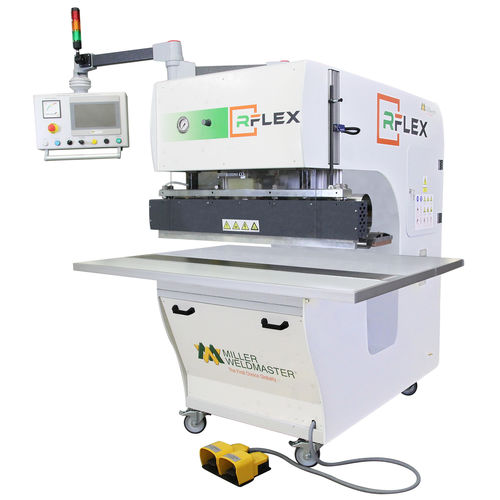

High-frequency micro-welder RFlex

manualfor PVC

The Most Versatile RADIO FREQUENCY WELDER 4220 Alabama Ave | Navarre | Ohio | 44662 | USA | T. 330-833-6739 | [email protected] Producing strong, durable and even welds is what the RFlex was built to do. It will weld a wide range of materials of varying thickness. The RFlex is the most flexible and easy to use RF welder available on the market. It’s designed to cover a large range of power output configurations with the use of our exclusive RF autotuning system. The RFlex welder at it’s core is a 15kW RF powered machine. Using the most recent RF generator technology, our efficient RF machine will perform as most 17kW or 22kW machines with a maximum RFlex welding surface being at almost 100 squared inches in a linear configuration. The RFlex is the most efficient, flexible and eco-friendly RF welder available. Applications: • Tensile structures, tents, shade systems, truck covers and side curtains • Sign and banner finishing • Awnings, shades, boat covers and inflatables • Containment pools, oil booms, ground liners • Swimming pool liners and covers, flood dams and water tanks • Thermoforming, protective garments, water and gas storage Technical Specification Voltage: 240 Volts - Three Phase - 60 Amp. 400 Volts - Three Phase - 40 Amp. 480 Volts - Three Phase - 40 Amp. Electron Tube: Air cooled metal-ceramic triode Antiflash System: Ultra fast solid state arc limiter Control System: PLC & 10” touch screen HMI Electrode Length: 1.2m (47”) Optional: 1.5m (59”) Electrode Stroke: 0.16m (6.3”) Space Behind Electrode: 0.84m (33”) Air Requirements: 2cfm @ 120ps Power Consumption: Approx.22kW Dimensions: Width: 1.7m (66.9”) Length: 1.97m (77.5”) Height: 2.4m (94.5”)
