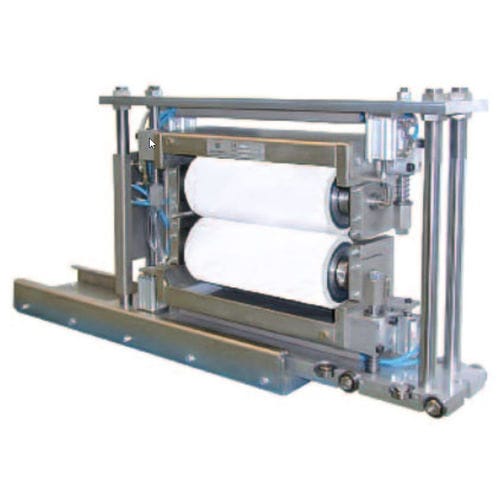

Oil lubrication unit LRS2P 110

rollerbendingdrawing

Millutensil produces roller, felt-covered (or brush), and spray lubrication systems. Millutensil also produces dispenser systems, along with pressure and electronic feed systems. Section roller lubricators The oil is fed to the rollers from the inside-out, through the cavities. The upper and lower rollers regulation on the material occurs by means of pneumatic cylinders. The lubricator can be equipped with an extractable tray system for easier maintenance. SPECIFICATION Oil viscosity at 40° C - up to 200 mm2/s Feeding length approx. - Unlimited feeding length Stroke number - up to 100 per mm Thickness of material - 1 to 10 mm Stroke of upper roller - 20 mm Sheet width - from 200 to 2.150 mm APPLICATION Suitable for blanking, bending and drawing
