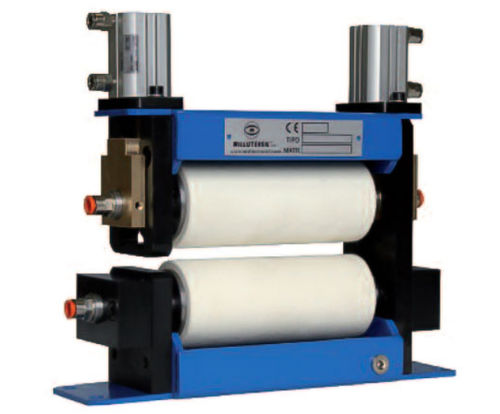

Oil lubrication unit LRFC 60

sprayrollersheet

Millutensil produces roller, felt-covered (or brush), and spray lubrication systems. Millutensil also produces dispenser systems, along with pressure and electronic feed systems. Lubricators with felt rollers for lateral lubrication The oil is fed to the felt rollers from the inside-out, through the cavities. The upper roller regulation on the material occurs by means of pneumatic cylinder. The lubricators are usually positioned on the left and right side of the sheet to be lubricated. SPECIFICATION Oil viscosity at 40° C - up to 150 mm2/s Feeding length approx. - 600 mm Stroke number - up to 150 per mm Thickness of material - 1 to 4 mm Stroke of upper roller - 15 mm Sheet width - from 100 to 200 mm APPLICATION Suitable for blanking, bending and drawing, forming machines
