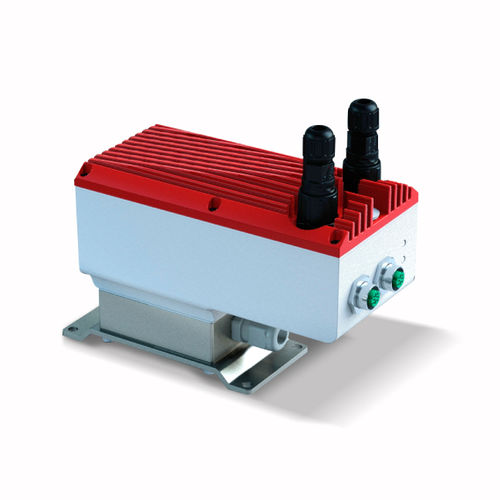

Three-phase frequency converter DR-BUS Nearby

vector controldigitalintegrated

INVERTER FOR THREE-PHASE MOTORS INVERTER digital drive The DR-BUS NEARBY was designed to be integrated with three-phase motors, offering a compact solution to control the speed of the motors using fieldbus protocol. INVERTER:230V single-phase or 115V single-phase power• 0-230V 0-120Hz output • USB port for parametrisation • V/F or FOC (sensorless) speed control • Fieldbus supported: EtherCAT, EthernetIP, Powerlink, Profinet • Optional brake management 24V 10W • Optional STO • IP 65 Technical details: Supply voltage: 230V 50/60 Hz 2.8 Arms single-phase, 115V 50/60Hz 1.4 Arms single-phase Output: 0-230V 0-120Hz 1.4Arms/5Arms Peak three-phase Motor power: up to 270W Motor control algorithms: V/F, FOC Fieldbus: EtherCAT, EthernetIP, Powerlink, Profinet IP 65
