DC gear-motor FC series
brushlessservomotorworm

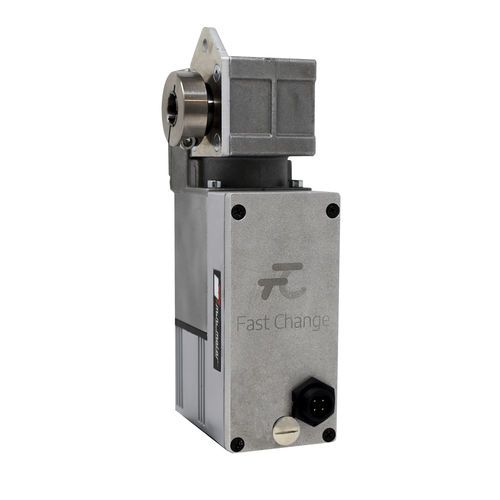

DC gear-motor - FC series - Mini Motor SPA - brushless / servomotor / worm
DC gear-motor - FC series - Mini Motor SPA - brushless / servomotor / worm
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
DC, brushless, servomotor
Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W, 50 W...100 W
Voltage
24 V, 48 V
Torque
1 - 5 Nm, 5 - 10 Nm
Certifications
CE
Other characteristics
with encoder, IP65, 4-pole, CANopen
Gear ratio

20 unit, 24 unit, 40 unit, 42 unit

Operating temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Rotational speed

57 rpm, 72 rpm, 125 rpm, 150 rpm
(358.1416 rad.min-1, 452.3893 rad.min-1, 785.3982 rad.min-1, 942.4778 rad.min-1)

Description

BRUSHLESS SERVOGEARMOTOR FOR FORMAT CHANGEOVER – 4-pole sinusoidal brushless servomotor – Rotor with NdFeB magnets and reduced clearance bearings – 24/48 Vdc supply voltage – Thermal safety cutout, class F winding – IP65 protection (CEI EN 60529) – Feedback with multi-turn absolute encoder – Gearbox case in die-cast aluminium – CARO bronze ring (120÷160 HB), screw with ground thread – Lubrication with long-life oil, sealing rings for high temperatures
