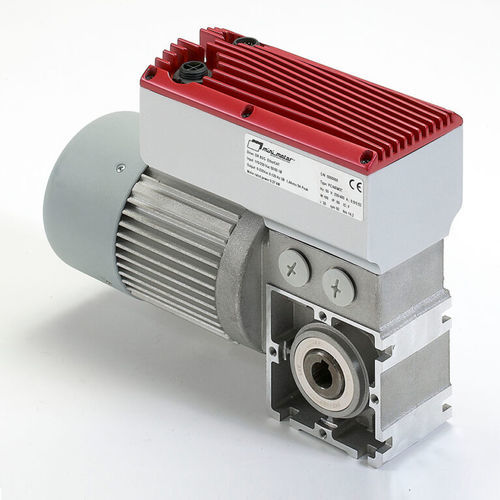

Three-phase frequency inverter DR-BUS

single-phasevector controldigital output

INVERTER FOR THREE-PHASE MOTORS FOR INTEGRATION WITH MINI MOTOR PRODUCTS INVERTER digital drive The DR-BUS was designed to be integrated with the Minimotor AC –ACE –PA- PAE- MC – MCE – PC – PCE families of three-phase motors, offering a compact solution to control the speed of the motors using fieldbus protocol. INVERTER:230V single-phase or 115V single-phase power • USB port for parametrisation • V/F or FOC (sensorless) speed control • Fieldbus supported: EtherCAT, EthernetIP, Powerlink, Profinet • Optional brake management 24V 10W • Optional STO • IP 65 Technical details: Supply voltage: 230V 50/60 Hz 2.8 Arms single-phase, 115V 50/60Hz 1.4 Arms single-phase Motor control algorithms: V/F, FOC Fieldbus: EtherCAT, EthernetIP, Powerlink, Profinet Compatible motor families: AC –ACE –PA- PAE- MC – MCE – PC – PCE IP 65
