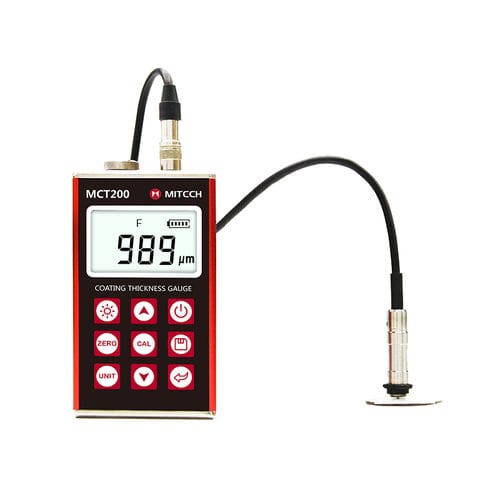

Coating thickness gauge MCT200

corrosionpaperportable

MCT200 Coating Thickness Gauge Measuring range：(0～1250) μm, depends on probes. maximum 10mm for the probe Resolution Accuracy：±(3%H+1) μm; Communication storage：Memory for up to 20 files (up to 50 values for each file) o Working time：200 hours typical operating time (EL backlight off). Main unit weight：340g Dimensions：125*67*31mm Package dimensions：31.5*24.5*8.5cm Total weight：1.4kg Focus on quality and details MCT200 is accurate in results and sensitivity HD Backlight,clear and stable Based on eddy current and magnetic working principle, capable of testing the coating thickness on the surface of workpiece. High contrast segment LCD, EL backlight used in poor light With probe zéro calibration, two-point calibration and multi-point calibration function. Testing the thickness of coating Like paper,tape and other coating products Put the coat on the métal as the coating of substrate. Wide measure range Meet the needs of different industries for coating thickness testing. Low-power consumption long standby Two AA size batteries, auto-sleep and shutdown function. IP65 protection degree, good quality Can effectively reduce the corrosion of oil,dust, durable and reliable. Service commitment Cover ail areas, 24h service. MITECH users hâve lifelong free service of upgrade, online report and search. Any problems and troubles happens in using can directly contact MITECH expert. MCT200 is in accordance with below standards: GB/T 4965-2003 Magnetic induction method for measuring non-magnetic coating on magnetic substrate GB/T 4957-2003 Eddy current method for measuring non-conductive coating on non-magnetic métal substrate JB/T 8393-1996 Magnetic
