Mechanical workholding component Pitbull® Clamps
workpiecehorizontalsteel

mechanical workholding component
mechanical workholding component
mechanical workholding component
mechanical workholding component
Add to favorites
Compare this product


Characteristics

Type
mechanical
Applications
workpiece
Other characteristics
horizontal, steel, vertical

Description

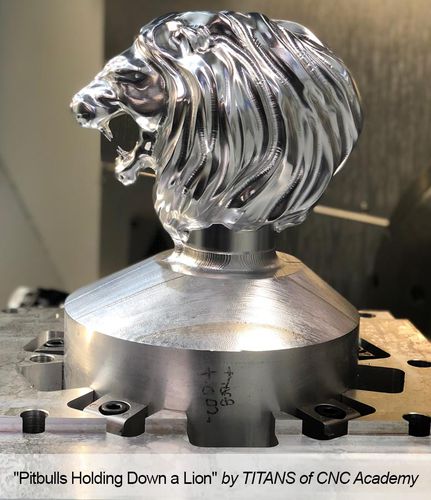

Pitbull® Clamps The revolutionary Pitbull® Clamp remains the lowest profile, highest holding force clamp in the industry today. High vertical and horizontal clamping forces are generated, considering the size of the Pitbull® Clamps. It uses a standard cap screw and an oil resistant O-ring. The Pitbull® Clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose, a brass version to help prevent marring the workpiece and a machinable version. Unique Features of Pitbull® Clamps Extremely low bite Positive down force High resistance to rip-out Simple, sturdy, high quality design and components Gain maximum tool access to your work Virtually eliminate lost work Great option with hydraulic Tungsten Carbide coating can be added to increase holding force Creating Fixtures is Easy. . . Simply: Machine a slot for the Pitbull® Clamp. Drill and tap a hole for the cap screw. Assemble the clamp as shown in the diagram. Position clamp as shown in diagram and loosely screw to fixture. Insert workpiece and tighten cap screw.
