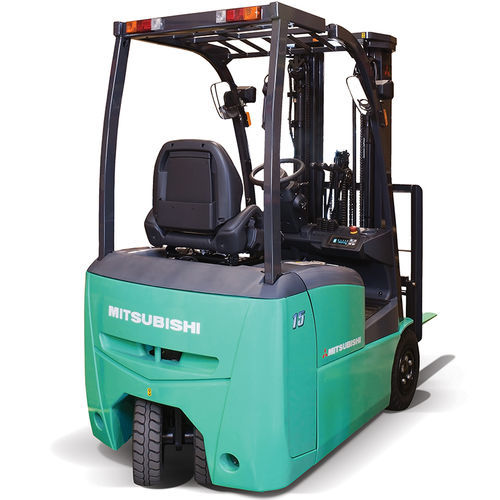

Electric forklift truck FB13-20TCB series
ride-onindoorfor warehouse

Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 2
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 3
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 4
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 5
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 6
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 7
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 8
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 9
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 10
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 11
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 12
Electric forklift truck - FB13-20TCB series - Mitsubishi Forklift Trucks - ride-on / indoor / for warehouse - image - 13
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for warehouse, indoor
Other characteristics
counterbalanced, compact, increased safety, 3-wheel, with AC motor
Carrying capacity

1,300 kg, 1,500 kg, 1,600 kg, 1,800 kg, 2,000 kg
(2,866 lb, 3,306.9 lb, 3,527.4 lb, 3,968.3 lb, 4,409.2 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,090 mm
(42.9 in)

Overall length

Min.: 2,855 mm
(112.4 in)

Max.: 3,255 mm
(128.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 2,345 kg
(5,169.8 lb)

Max.: 3,405 kg
(7,506.7 lb)

Axle loading with maximum load front

Min.: 3,460 kg
(7,628 lb)

Max.: 4,815 kg
(10,615.3 lb)

Axle loading with maximum load rear

Min.: 445 kg
(981.1 lb)

Max.: 785 kg
(1,730.6 lb)

Axle loading without load front

Min.: 1,230 kg
(2,711.7 lb)

Max.: 1,615 kg
(3,560.5 lb)

Axle loading without load rear

Min.: 1,395 kg
(3,075.4 lb)

Max.: 1,890 kg
(4,166.7 lb)

Track width front

920 mm
(36.2 in)

Track width rear

230 mm, 250 mm
(9.1 in, 9.8 in)

Height of mast when lowered

1,975 mm
(77.8 in)

Free lift

115 mm, 120 mm
(4.5 in, 4.7 in)

Overall height with mast raised

4,000 mm, 4,015 mm
(157.5 in, 158.1 in)

Height to top of overhead guard

2,050 mm
(80.7 in)

Seat height

955 mm
(37.6 in)

Tow couplig height

575 mm
(22.6 in)

Length to fork face

Min.: 1,785 mm
(70.3 in)

Max.: 2,185 mm
(86 in)

Fork carriage width

920 mm, 1,000 mm
(36.2 in, 39.4 in)

Ground clearance under mast with load

85 mm
(3.3 in)

Ground clearance at center of wheelbase with load

85 mm
(3.3 in)

Turning circle radius

Min.: 1,410 mm
(55.5 in)

Max.: 1,770 mm
(69.7 in)

Minimum distance between centres of rotation

0 mm
(0 in)

Travel speed

Min.: 14 km/h
(8.7 mph)

Max.: 16.5 km/h
(10.3 mph)

Lifting speed

Min.: 0.3 m/s
(0.984 ft/s)

Max.: 0.61 m/s
(2.001 ft/s)

Lowering speed

0.5 m/s, 0.55 m/s
(1.64 ft/s, 1.804 ft/s)

Rated drawbar pull

Min.: 2,010 N

Max.: 3,180 N

Gradeability

Min.: 3.5 %

Max.: 13 %

Rated output

4.5 kW
(6.1 hp)

Maximum operating pressure

137 bar, 157 bar, 181 bar
(1,987 psi, 2,277.1 psi, 2,625.2 psi)

Oil flow

50 l/min, 60 l/min
(13.2 us gal/min, 15.9 us gal/min)

Noise level

75 dB

Description

Whether you're working in a warehouse, loading bay, or production site, space is at a premium... and so is performance. The Mitsubishi FB13-20TCB Series delivers both. These 3-wheel electric counter­balance trucks are compact, highly manoeuvrable, and available in capacities from 1.3 to 2.0 tonnes. Under the surface, advanced AC motors and smart electronic systems work together to provide smooth lifting, fast acceleration, and precise steering — all with minimal noise and energy use. Power steering, wet disc brakes, and regenerative braking come as standard, keeping the trucks responsive while reducing wear and maintenance. Inside the cab, every detail is designed to help your operator stay comfortable, alert and in control — from the full-suspension seat to the clear display and intuitive controls. And with a wide choice of customisation options, it's easy to configure to meet your site's exact needs. Compact Design The FBTCB Series is built for agility. With its compact three-wheel chassis and tight turning radius, it handles narrow aisles and confined spaces with ease, making it ideal for busy warehouses and indoor logistics environments. Smooth electric steering Electric power steering gives precise, effortless control while using less energy. With no hydraulic system to maintain, it also means quieter operation, fewer service requirements, and zero risk of oil leaks.
