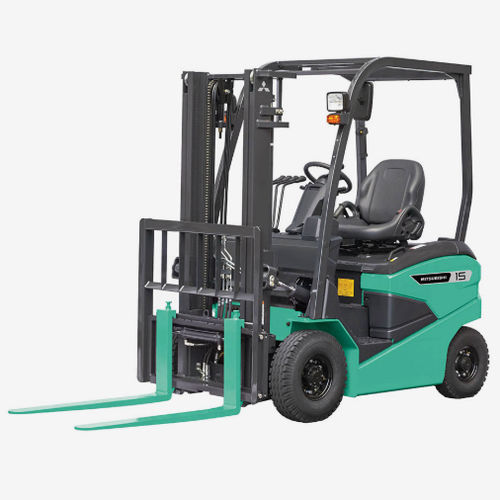

Electric forklift truck FB10-35(L)CB series
ride-onhandlingcounterbalanced

Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 2
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 3
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 4
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 5
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 6
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 7
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 8
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 9
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 10
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 11
Electric forklift truck - FB10-35(L)CB series - Mitsubishi Forklift Trucks - ride-on / handling / counterbalanced - image - 12
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, counterbalanced, low-noise, increased safety, with AC motor
Carrying capacity

Max.: 3,500 kg
(7,716.2 lb)

Min.: 1,000 kg
(2,204.6 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,100 mm, 1,115 mm, 1,155 mm, 1,255 mm
(43.3 in, 43.9 in, 45.5 in, 49.4 in)

Overall length

Max.: 3,670 mm
(144.5 in)

Min.: 3,150 mm
(124 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 5,425 kg
(11,960.1 lb)

Min.: 2,935 kg
(6,470.6 lb)

Axle loading with maximum load front

Max.: 7,825 kg
(17,251.2 lb)

Min.: 3,065 kg
(6,757.2 lb)

Axle loading with maximum load rear

Max.: 990 kg
(2,182.6 lb)

Min.: 110 kg
(242.5 lb)

Axle loading without load front

Max.: 2,275 kg
(5,015.5 lb)

Min.: 1,415 kg
(3,119.5 lb)

Axle loading without load rear

Max.: 3,160 kg
(6,966.6 lb)

Min.: 1,270 kg
(2,799.9 lb)

Track width front

925 mm, 930 mm, 955 mm, 1,030 mm
(36.4 in, 36.6 in, 37.6 in, 40.6 in)

Track width rear

900 mm, 965 mm, 980 mm
(35.4 in, 38 in, 38.6 in)

Height of mast when lowered

1,990 mm, 1,995 mm, 2,015 mm, 2,115 mm
(78.3 in, 78.5 in, 79.3 in, 83.3 in)

Free lift

115 mm, 140 mm, 145 mm
(4.5 in, 5.5 in, 5.7 in)

Overall height with mast raised

4,055 mm
(159.6 in)

Height to top of overhead guard

2,110 mm, 2,200 mm
(83.1 in, 86.6 in)

Seat height

1,005 mm, 1,150 mm
(39.6 in, 45.3 in)

Tow couplig height

490 mm, 585 mm
(19.3 in, 23 in)

Length to fork face

Max.: 2,600 mm
(102.4 in)

Min.: 2,080 mm
(81.9 in)

Fork carriage width

920 mm, 1,000 mm
(36.2 in, 39.4 in)

Ground clearance under mast with load

110 mm, 115 mm, 135 mm
(4.3 in, 4.5 in, 5.3 in)

Ground clearance at center of wheelbase with load

110 mm, 120 mm
(4.3 in, 4.7 in)

Turning circle radius

Max.: 2,330 mm
(91.7 in)

Min.: 1,850 mm
(72.8 in)

Minimum distance between centres of rotation

557 mm, 618 mm, 706 mm, 769 mm
(21.9 in, 24.3 in, 27.8 in, 30.3 in)

Travel speed

13.5 km/h, 14 km/h, 15.5 km/h, 16 km/h
(8.4 mph, 8.7 mph, 9.6 mph, 9.9 mph)

Lifting speed

Max.: 0.55 m/s
(1.804 ft/s)

Min.: 0.26 m/s
(0.853 ft/s)

Lowering speed

Max.: 0.51 m/s
(1.673 ft/s)

Min.: 0.31 m/s
(1.017 ft/s)

Rated drawbar pull

Max.: 3,350 N

Min.: 2,350 N

Gradeability

Max.: 10 %

Min.: 3.5 %

Rated output

7 kW, 8.5 kW, 11 kW
(9.5 hp, 11.6 hp, 15 hp)

Maximum operating pressure

137 bar, 157 bar, 172 bar, 181 bar
(1,987 psi, 2,277.1 psi, 2,494.6 psi, 2,625.2 psi)

Oil flow

50 l/min, 55 l/min, 75 l/min
(13.2 us gal/min, 14.5 us gal/min, 19.8 us gal/min)

Noise level

75 dB

Description

Combining exceptional ergonomics, a host of safety features, and outstanding energy efficiency, the FB-CB series is an electric forklift that offers the ideal combination of high productivity with low running costs. Reliability has been a hallmark of our trucks for decades and the FB-CB series is no different. Its robust, high-quality construction can handle the tough jobs, and downtime is kept to a minimum thanks to a low maintenance design and easily accessible service points. A wide range of drivers are catered for with the spacious and comfortable operator compartment, easily adapted to suit their ideal driving position. Low noise, low vibration and high visibility make for more productive working with lower fatigue even through longer shifts. The FB-CB series offers nine 48 V models with capabilities ranging from 1.0–2.5 tonnes and two 72 V models of 3.0–3.5 tonnes for heavier applications. Combine that choice with a large number of optional features and a waterproof rating of IPx4, and you have remarkably versatile electric trucks that can drive the heart of your operations, indoors and out. Curve control Reduces speed going into corners to keep travel smooth and reduce force on the load during transit. Spacious ergonomic cabin Because the truck is only as productive as its operator, the FBCB offers ample room and adjustability to keep drivers comfortable throughout their shift. High visibility mast Vision is fundamental to any safe fork truck operation. The FBCB series offers excellent through-mast vision for increased safety and reduced damage costs.
