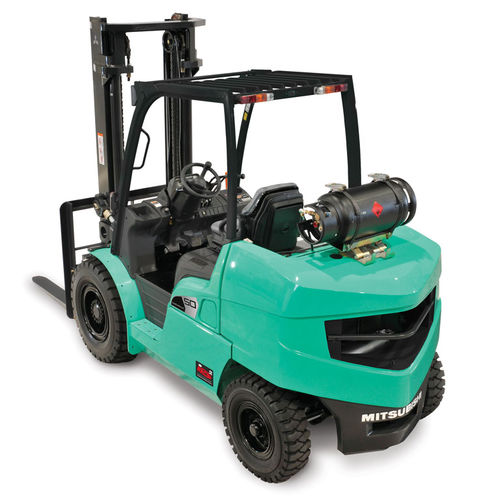

LPG forklift FG40-55(C)NT Series ride-onhandlingcounterbalanced
Add to favorites
Compare this product
Characteristics
- Motor type
- LPG
- Operator
- ride-on
- Applications
- handling
- Other characteristics
- 4-wheel, counterbalanced, low-noise
- Carrying capacity
4,000 kg, 4,500 kg, 5,000 kg, 5,500 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb, 12,125.4 lb)- Lifting height
3,300 mm
(129.92 in)- Overall width
Min.: 1,415 mm
(55.7 in)Max.: 1,965 mm
(77.4 in)- Overall length
4,220 mm, 4,350 mm, 4,390 mm, 4,530 mm, 4,580 mm
(166.1 in, 171.3 in, 172.8 in, 178.3 in, 180.3 in)- Load center distance
500 mm, 600 mm
(19.7 in, 23.6 in)- Weight without load
5,860 kg, 6,270 kg, 6,780 kg, 7,240 kg, 7,570 kg
(12,919.1 lb, 13,823 lb, 14,947.3 lb, 15,961.5 lb, 16,689 lb)- Axle loading with maximum load front
8,940 kg, 9,680 kg, 10,570 kg, 10,990 kg, 11,710 kg
(19,709.3 lb, 21,340.7 lb, 23,302.9 lb, 24,228.8 lb, 25,816.1 lb)- Axle loading with maximum load rear
920 kg, 1,090 kg, 1,210 kg, 1,250 kg, 1,360 kg
(2,028.3 lb, 2,403 lb, 2,667.6 lb, 2,755.8 lb, 2,998.3 lb)- Axle loading without load front
2,610 kg, 2,750 kg, 2,870 kg, 3,130 kg, 3,190 kg
(5,754.1 lb, 6,062.7 lb, 6,327.3 lb, 6,900.5 lb, 7,032.7 lb)- Axle loading without load rear
3,250 kg, 3,520 kg, 3,920 kg, 4,050 kg, 4,440 kg
(7,165 lb, 7,760.3 lb, 8,642.1 lb, 8,928.7 lb, 9,788.5 lb)- Track width front
1,175 mm
(46.3 in)- Track width rear
1,180 mm
(46.5 in)- Height of mast when lowered
2,320 mm, 2,400 mm
(91.3 in, 94.5 in)- Free lift
150 mm, 160 mm
(5.9 in, 6.3 in)- Overall height with mast raised
4,000 mm, 4,430 mm, 4,580 mm
(157.5 in, 174.4 in, 180.3 in)- Height to top of overhead guard
2,250 mm, 2,296 mm
(88.6 in, 90.4 in)- Seat height
1,082 mm, 1,280 mm
(42.6 in, 50.4 in)- Tow couplig height
395 mm
(15.6 in)- Length to fork face
3,000 mm, 3,130 mm, 3,170 mm, 3,310 mm, 3,360 mm
(118.1 in, 123.2 in, 124.8 in, 130.3 in, 132.3 in)- Fork carriage width
1,190 mm
(46.9 in)- Ground clearance under mast with load
150 mm
(5.9 in)- Ground clearance at center of wheelbase with load
227 mm
(8.9 in)- Turning circle radius
2,580 mm, 2,730 mm, 2,760 mm, 2,890 mm, 2,940 mm
(101.6 in, 107.5 in, 108.7 in, 113.8 in, 115.7 in)- Minimum distance between centres of rotation
836 mm, 903 mm, 971 mm
(32.9 in, 35.6 in, 38.2 in)- Travel speed
21.5 km/h, 22 km/h, 22.5 km/h
(13.4 mph, 13.7 mph, 14 mph)- Lifting speed
0.5 m/s, 0.6 m/s
(1.64 ft/s, 1.969 ft/s)- Lowering speed
0.5 m/s
(1.64 ft/s)- Rated drawbar pull
Min.: 17,200 N
Max.: 28,000 N
- Gradeability
Min.: 19.9 %
Max.: 30 %
- Rated output
60.8 kW, 72 kW
(82.7 hp, 97.9 hp)- Rated speed
2,450 rpm
(15,393.8 rad.min-1)- Cubic capacity
4,452 cm³, 4,500 cm³
(150.5 US fl oz, 152.2 US fl oz)- Maximum operating pressure
191 bar
(2,770.2 psi)- Oil flow
80 l/min
(21.1 us gal/min)- Noise level
84 dB
Description
Built to work as hard as you do, the FD/FG40-55(C)NT Series promises reliable, class-leading performance - whatever the challenges.
Tried and tested in the toughest applications, this no-nonsense design builds on the successes of its predecessors - delivering optimal performance.
The FD/FG40-55(C)NT Series has a sophisticated engine and long-life design that keep running costs and maintenance demands low for maximum efficiency and productivity.
Green inside and out, the FD/FG40-55(C)NT Series keeps noise and exhaust emissions to a minimum, while delivering improved overall economy.
Integrated Presence System (IPS2)
Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators.
3-way catalytic converter (LPG)
Uniquely fitted to all LPG models in line with Mitsubishi's uncompromising commitment to safety. Ensures industry-leading low fuel consumption, low harmful emissions and high-power performance.
Sealed chassis with full belly guard and inner wheel covers
Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by airborne dust particles.
Electronic speed control
The sophisticated electronic diesel control allows: two adjustable set speeds, low gear lock (for safety at height or on rough ground) and soft-power mode (reducing wheelspin, saving tyres and reduces fuel consumption).
