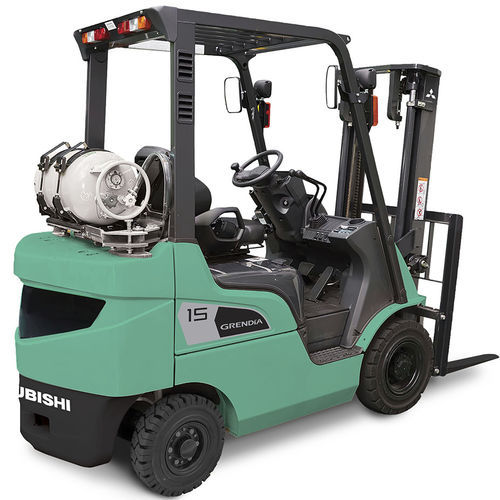

LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 2
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 3
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 4
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 5
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 6
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 7
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 8
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 9
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 10
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 11
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 12
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 13
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 14
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 15
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 16
LPG forklift - FG15-35(C)PT(H) Series - Mïtsubishi Forklift Trucks - ride-on / indoor / outdoor - image - 17
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
handling, industrial, indoor, outdoor
Other characteristics
4-wheel, counterbalanced, high-performance, pneumatic tire, increased safety
Carrying capacity

Min.: 1,500 kg
(3,306.9 lb)

Max.: 3,500 kg
(7,716.2 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

Min.: 1,065 mm
(41.9 in)

Max.: 1,710 mm
(67.3 in)

Overall length

Min.: 3,180 mm
(125.2 in)

Max.: 3,715 mm
(146.3 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Min.: 2,490 kg
(5,489.5 lb)

Max.: 4,630 kg
(10,207.4 lb)

Axle loading with maximum load front

Min.: 3,510 kg
(7,738.2 lb)

Max.: 7,180 kg
(15,829.2 lb)

Axle loading with maximum load rear

Min.: 460 kg
(1,014.1 lb)

Max.: 950 kg
(2,094.4 lb)

Axle loading without load front

Min.: 990 kg
(2,182.6 lb)

Max.: 1,710 kg
(3,769.9 lb)

Axle loading without load rear

Min.: 1,430 kg
(3,152.6 lb)

Max.: 3,000 kg
(6,613.9 lb)

Track width front

890 mm, 960 mm, 1,060 mm
(35 in, 37.8 in, 41.7 in)

Track width rear

900 mm, 980 mm
(35.4 in, 38.6 in)

Height of mast when lowered

1,990 mm, 2,015 mm, 2,130 mm
(78.3 in, 79.3 in, 83.9 in)

Free lift

115 mm, 140 mm, 145 mm
(4.5 in, 5.5 in, 5.7 in)

Overall height with mast raised

4,055 mm
(159.6 in)

Height to top of overhead guard

2,065 mm, 2,074 mm, 2,093 mm, 2,103 mm
(81.3 in, 81.7 in, 82.4 in, 82.8 in)

Seat height

929 mm, 938 mm, 988 mm
(36.6 in, 36.9 in, 38.9 in)

Tow couplig height

290 mm, 310 mm, 330 mm, 340 mm
(11.4 in, 12.2 in, 13 in, 13.4 in)

Length to fork face

Min.: 2,260 mm
(89 in)

Max.: 2,795 mm
(110 in)

Fork carriage width

920 mm, 1,000 mm
(36.2 in, 39.4 in)

Ground clearance under mast with load

110 mm, 115 mm, 135 mm, 150 mm
(4.3 in, 4.5 in, 5.3 in, 5.9 in)

Ground clearance at center of wheelbase with load

150 mm, 160 mm, 190 mm, 200 mm
(5.9 in, 6.3 in, 7.5 in, 7.9 in)

Turning circle radius

Min.: 1,950 mm
(76.8 in)

Max.: 2,440 mm
(96.1 in)

Travel speed

Min.: 17.5 km/h
(10.9 mph)

Max.: 19.5 km/h
(12.1 mph)

Lifting speed

Min.: 0.42 m/s
(1.378 ft/s)

Max.: 0.68 m/s
(2.231 ft/s)

Lowering speed

Min.: 0.31 m/s
(1.017 ft/s)

Max.: 0.52 m/s
(1.706 ft/s)

Rated drawbar pull

Min.: 14,600 N

Max.: 18,200 N

Gradeability

Min.: 22 %

Max.: 77 %

Rated output

36 kW, 42 kW
(48.9 hp, 57.1 hp)

Rated speed

2,700 rpm
(16,964.6 rad.min-1)

Cubic capacity

2,065 cm³, 2,488 cm³
(69.8 US fl oz, 84.1 US fl oz)

Maximum operating pressure

180 bar
(2,610.7 psi)

Oil flow

60 l/min
(15.9 us gal/min)

Noise level

79 dB

Description

The latest generation of GRENDiA ES continues to set the very highest standards for IC engine counter­balance trucks. The philosophy behind GRENDiA has always been simple: maximum productivity, minimal running costs, and legendary reliability. With its exceptional fuel economy, cutting-edge features, durable components and low-maintenance design, GRENDiA ES is the perfect example of this thinking. To that, Mitsubishi Forklift Trucks has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions. Integrated Presence System (IPS2) Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. Includes a parking brake alarm, plus a seatbelt interlock and light. DuoControl Lever This patented feature allows for lifting, lowering and tilt to all be performed for the same lever for simple, intuitive control that's easy to operate with heavy gloves. Full-colour display On this large, user-friendly interface, operators can select from a light mode or a dark mode, ensuring that they can easily and quickly access important data, even in challenging lighting conditions. As well as a speedometer and warning lights, the multifunctional display also offers dual hour meters and incorporates switches for additional features.
