Numeric display 544 series

8-digit9-digit16-digit

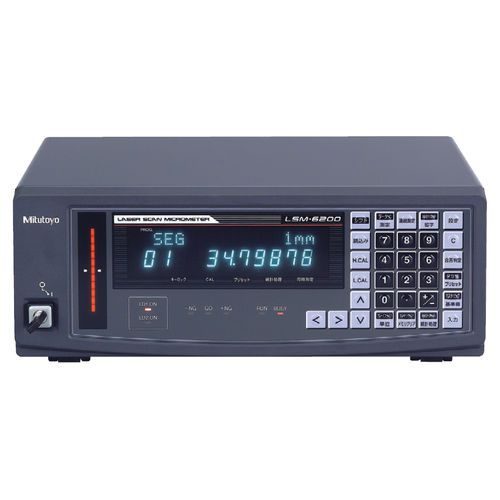

Display Unit for Lasr Scan Micrometer helps in setting up those values for continuous and consistent monitoring that has been engineered dual-display design. It shows two measurement values simultaneously. The selection can be made from segment measurement (7 segments max) and edge measurement (1 to 255 edges). There is also inclusion of RS-232C and I/O and analog interface capabilities along with statistical calculation. LSM-5200 Display Unit SERIES 544 — Panel-mount Type •A compact controller which could be used for multi-unit system configurations. •A panel-mount type display unit designed for the LSM-S series. •Analog I/O and RS-232C is standard. •Measurement of odd fluted parts, and simultaneous measurement / 2-program function are equipped. LSM-6200 Display Unit SERIES 544 — Multi-function Type •2-axis display unit enables 2 items be displayed simultaneously. •Capable of statistical analysis such as: average, maximum value, minimum value, range (max. to min.). •Segment measurement (7 points) or edge measurement (1 to 255 edges) can be selected. •A function to eliminate abnormal values is standard. •100 tolerance values, preset values, or settings can be stored.
