Laser micrometer LSM series

scanningoutsidedigital display

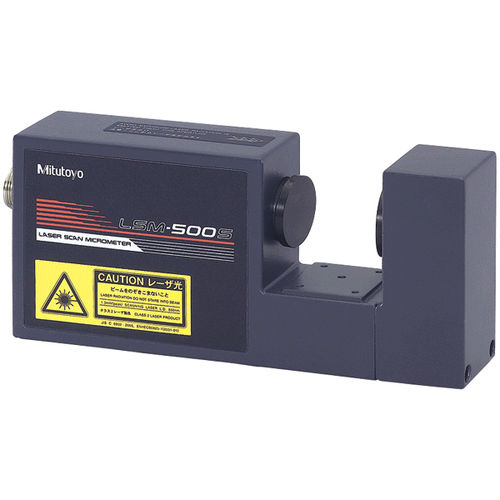

The Mituyo Laser Scan Micrometer LSM-500S provides non-contact, high-speed and high-precision measurement with an ±0.3μm accuracy over its 5μm to 2mm measuring range, with ultra high repeatability of ±0.03μm. With a laser scanning speed of 7 m/s, the Mituyo LSM-500S provides 3200 scans/s of measuring region of 1mm x 2mm. Non-contact, high-speed, high-precision measurement LSM-500S Measuring Unit SERIES 544 — 5 ym to 2 mm Measuring Unit Capable of measuring down to 5 pm outside diameter*1. Provides ultra-high accuracy of ±0.3 pm over the entire measuring range (5 pm to 2 mm). LSM-501S Measuring Unit SERIES 544 — 50 pm to 10 mm Measuring Unit Provides ultra-high accuracy of ±0.5 pm over the entire measuring range (0.05 to 10 mm). Narrow range accuracy of ±(0.3+0.1 AD) pm for high-precision measurement.
