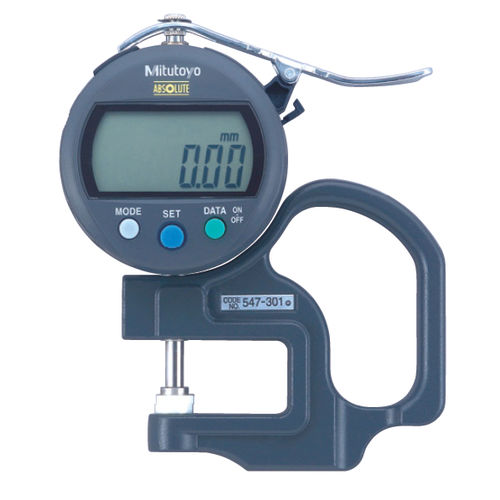

Thin material thickness gauge 547 series

paperportablehandheld

The Dial Thickness gages from Mitutoyo, easily measures the thickness of thin supplies like paper or felt. Both the anvil and the contact points are made of ceramic for resistance against rust. Furthermore, it features integrated crystal and bezel molding that is capable of suppressing water and oil infiltration. • With a single touch, the dial thickness gage can quickly measure the thickness of small parts, paper, felt, etc. • For models using a ceramic contact and anvil, there is no need to worry about rust. • Watertight assembly of bezel and crystal prevents water or oil from penetrating the dial indicator. • Battery: SR44 (1 pc.), 938882 for initial operational checks (standard accessory) • Battery life: Approx. 7,000 hours of continuous use Approx. 1.2 years under normal use • Maximum response speed: Not restricted (except for scanning measurement) Functions • Zero-setting (INC system) • Presetting (ABS system) • Direction switching • Tolerance judgment • Resolution switching (For 0.001 mm or 0.00005 inch resolution models) • Calculation: f(x) -Ax • Function Lock • Data output • Display value holding (when no external device is connected) • 3300 rotary display • Low battery voltage alarm display • Error alarm display
