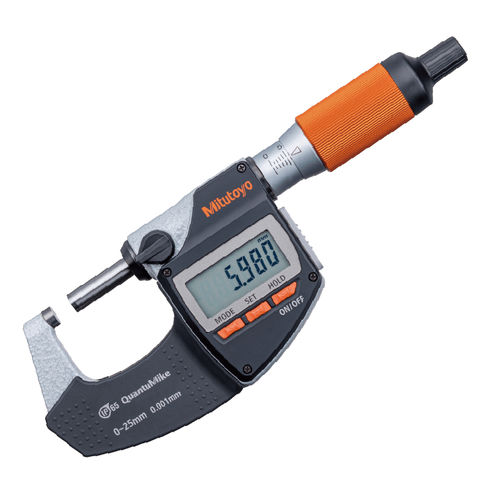

Computerized micrometer QuantuMike MD-E

externalprofessionnaldigital

Overview
The Mitutoyo QuantuMike MD-E is a high-speed, high-accuracy Digimatic micrometer designed to reduce measurement cycle time and enable reliable operation in industrial environments. It shortens workpiece approach and release times while providing functions that support consistent measurement and data integration.

Key features

• High-speed movement: thimble advances the spindle 2.0 mm per single rotation (typical micrometer: 0.5 mm), enabling faster measurements.
• Ratchet thimble mechanism: supports stable one-handed measurement; ratchet action works with both thimble and speeder to ensure consistent contact force.
• Approach speed warning: detects excessive approach speed and issues a warning to help prevent collisions with workpieces.
• Tolerance judgment and calculation functions: visual pass/fail tolerance indication and calculation functions to derive correction values for processing machines from measurement results.
• Water- and dust-resistant: IP65 protection for operation in environments with coolant splash or particulate exposure.
• Bidirectional Digimatic communication: supports Digimatic d1/d2 (output) and Digimatic S1 (input/output) for integration with gage management and inspection systems.
• Large display area: improved visibility without increasing overall unit size.

Performance / Usability
The MD-E reduces measurement cycle time and operator variability. Faster feed rate together with mechanical controls (approach speed warning, ratchet) enable efficient inspection of high-volume parts and more consistent results from less experienced operators. Data output supports automated inspection workflows and quality control systems.

User impressions
Operators report increased inspection throughput due to the high feed rate and ease of handling provided by the ratchet mechanism. The approach speed warning helps standardize measurement approach and contact pressure across inspectors, reducing variability.

Technical specifications

• Model family: QuantuMike MD-E
• Thimble spindle travel per rotation: 2.0 mm (vs typical 0.5 mm)
• Measuring mechanism: Digimatic electronic micrometer (Digimatic output/communication)
• Ratchet thimble and speeder: yes
• Approach speed warning: yes
• Tolerance judgment: visual pass/fail indication
• Calculation function: correction value calculation for processing machines
• Communication: Digimatic d1/d2 (output) and Digimatic S1 (input/output) supported
• Ingress protection: IP65
• Display: enlarged display area without increasing unit size
