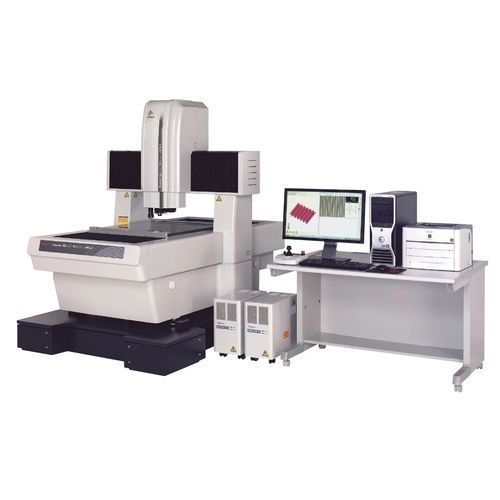

Visual measuring system QV series

thicknessdiameterdistance

QV Active Interchangeable objective lens zoom unit High-definition color camera Touch probe equipped models are also available QV APEX Pro/QV HYPER Pro All the QV Pro models are equipped with a strobe light‚ and the newly developed vision measuring function "StrobeSnap" delivers measurements with both high throughput and high accuracy. Measuring range (X×Y×Z): 300×200×200 mm to 600×650×250 mm CNC Vision Measuring System QV Pro The STREAM function provides an amazingly high throughput‚ due to the non-stop measurement. Reduces measurement time by about 40% compared with conventional models. A rich lineup with a wide array of measurement accuracies‚ ranges and functions. CNC Vision Measuring System with Touch Trigger Probe QV TP Pro Series Non-contact measurement and contact measurement can be done solely by one unit. Enables 3D measurement of workpieces such as press-molded products‚ plastic-molded products‚ and cut products‚ plastic-molded products‚and cut products‚which until now could not be measured with image processing alone. CNC Vision Measuring System with Non-Contact Displacement Sensor QVH4 Pro This dual system with a non-contact displacement sensor has a scanning function that enables measurement of minute height differences and 3D shapes. The non-contact displacement sensor (CPS probe) uses the wavelength confocal method. CNC Vision Measuring System with Non-Contact Displacement Sensor QV HYBRID TYPE1 This dual system with a non-contact displacement sensor has a scanning function that enables measurement of minute height differences and 3D shapes.
