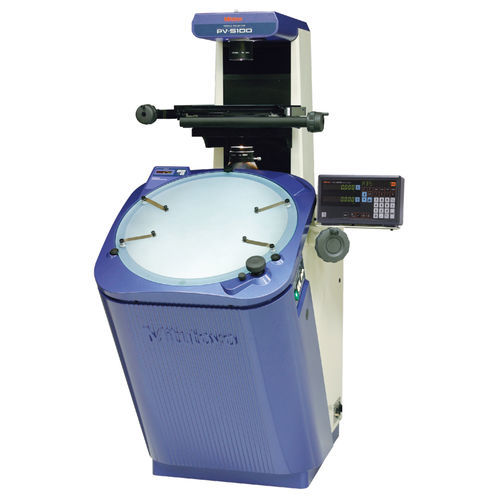

Digital profile projector PV-5110
verticallarge screen

digital profile projector
digital profile projector
Add to favorites
Compare this product


digital, vertical, large screen


This floor-standing model which uses overhead illumination favors a large display and perfectly positioned screen results in instantly traceable images compared with a template. It features a digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and correct angle measurement. Clear and bright images which offer easy and quick inspection of non-reflective workpieces such as plastic parts or printed materials are possible because of the optional oblique surface illumination unit (172-419). There are various technical benefits of this model that includes Inverted Protractor screen Effective diameter of about 508mm (20) Screen material, a fine-ground glass Screen rotation up to 360°, a fine feed and clamp Angle reading with a digital resolution of 1 or 0.01° (switchable). It also offers a range of up to 370° ABS/INC mode switching, zero set reference lines, Cross-hairs Projection lens of 10X (172-402), an optional zoom of 5X, 20X, 50X, 100X, contour illumination of up to ±0.1% or better and a surface illumination of up to 0.15% or better. Additionally there is maximum work piece height and contour illumination light source with a Halogen bulb of (24V, 150W).
