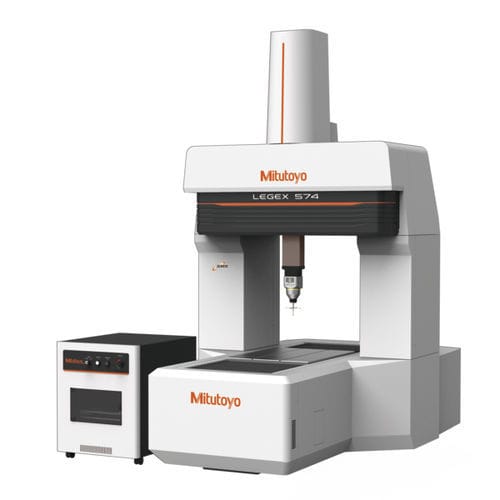

Bridge coordinate measuring machine LEGEX
multi-sensorultra-high accuracyautomated

bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
bridge coordinate measuring machine
Add to favorites
Compare this product


Characteristics

Structure
bridge
Probe type
multi-sensor
Other characteristics
ultra-high accuracy, automated
X travel

500 mm, 700 mm, 900 mm
(20 in, 28 in, 35 in)

Y travel

700 mm, 1,000 mm
(28 in, 39 in)

Z travel

450 mm, 600 mm
(18 in, 24 in)

Description

The LEGEX Series is an ultra-high precision CNC coordinate measuring machine. A fixed bridge structure and precision air bearings running on highly rigged guideways, ensure superior motion stability and ultrahigh geometrical accuracy. Drive systems placed in the “Center of gravity” of the sliders, gives best possible dynamic performance. In addition, an active anti-vibration stand has have been utilized to provide ultra-high accuracy. The construction is designed for thermal stability, low expansion crystallized glass scales and temperature compensation, results in guaranteed high accuracy within a temperature range of 18 °C to 22 °C. Main benefits: •Rigorous analysis of all possible error-producing factors, and elimination or minimization of their effects, delivers unsurpassed accuracy of 0,28μm •Ultra-high accuracy crystallized-glass scale with the ultra-low expansion coefficient of 0,01x10-6/K is used on each axis •The fixed bridge structure and precision air bearings, running on highly rigid guideways, give you superior motion stability and ultra-high geometrical accuracy •UC480 controller supporting Multi-sensor and SMS functionality (Smart Measuring System) •You can use several different types of optional probe systems, including Mitutoyo’s high precision MPP310Q scanning probe
